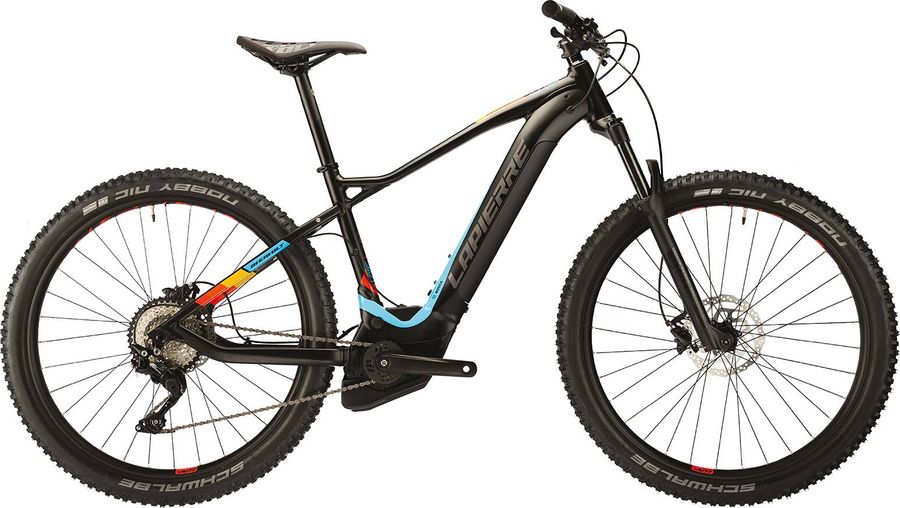

Lapierre OVERVOLT HT 9.5 2020

E-Bike

MTB Trail

Groupset

Shimano Deore

Frame material

Alloy

Wheel size

27,5"

Suspension type

Hardtail

Weight

21,9 kg

Front travel

120mm

About the Lapierre OVERVOLT HT 9.5 2020

The Lapierre OVERVOLT HT 9.5 2020 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , e-thru axle, and hydraulic disc brakes. The bike weighs approximately 21,9 kg.

Features

The Lapierre OVERVOLT HT 9.5 2020 has 3 features listed below.

Boost 110 More info

E-THRU AXLE More info

Hydraulic disc brakes More info

Specifications

Acessories
Grip	NEW LAPIERRE DD34 Lock-on
Pedals	VP VPE-527

Components
Steam	LAPIERRE ALLOY Ø: 31.8mm L: 50mm
Saddle	LAPIERRE by VELO
Headset	FSA Orbit 1.5 ZS NO.57SC
Seatpost	LAPIERRE ALLOY Ø: 31.6mm L: 350mm
Handlebar	LAPIERRE 6061DB W: 740mm R: 15mm Ø: 31.8mm
Brakes	Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit Black Brake hose kit SM-BH59-JK-SS Brake type Hydraulic disc brake Caliper finish Painted Caliper material Aluminum Caliper fixing bolt anti loosen method Snap ring Caliper fixing bolt material Steel Caliper fixing bolt tool size 5 mm Primary color Black Hose joint Straight J-Kit spec for OEM Model BR-MT200 Mount type Post-type Oil SHIMANO Mineral One way bleeding Pad standard B03S Resin Pad mount Split pin Piston 2 Piston material Resin Recommended brake lever BL-MT201 BL-MT200 Recommended disc brake rotor SM-RT10* SM-RT26*

Drivetrain
Crankset	LAPIERRE OVERVOLT BOSCH WIDE NARROW 16T 170mm
Motor	BOSCH PERFORMANCE CX (GEN2) 500Wh POWERTUBE PURION
Shifter	SHIMANO DEORE SLM6000 1x10
Rear derailleur	Shimano Deore RD-M6000-GS GS 10s
B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Steel Bracket body finish Painted Bracket body material Aluminum Compatible chain HG-X 10-speed Lower pulley max 42T Lower pulley min 42T Model RD-M6000-GS P axle finish Painted P axle material Steel pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 11T Pulley cage GS Speeds 10 Upper pulley max 11T Upper pulley min 11T Total capacity 41T
Chain	Shimano CN-HG54 273 g
Average weight (g) 273 Chromizing treatment roller link pin Model CN-HG54 Pin link plate Gray Roller link plate Brown Type HG-X 10-speed
Cassette	Shimano Deore CS-HG50-10 HG
Combination names 11-36T Compatible chain HG-X 10-speed Lock ring finish Cr plated Lock ring material Steel Model CS-HG50-10 Steel gear finish Ni plated Steel gear pieces 10 Type HG

Frameset
Frame	OVERVOLT INTEGRATED BOSCH SUPREME 5 ALLOY BOOST
Front suspension	RockShox Judy Silver TK Solo Air
Color Diffusion Black, Gloss Black Damper type TurnKey fork offset 42mm (27.5"), 51mm (27.5"), 51mm (29") Max tire width (mm) 81 Maximum rotor size 220mm Minimum rotor size 160mm Model FS-JDYS-TK-A2 Name Judy Silver TK Spring Solo Air Travel (mm) 100mm, 120mm, 130mm, 80mm Upper tube type 30mm straight wall steel Wheel size 27.5", 29"
