Lapierre XR 929 Ultimate 2018

MTB Cross Country
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
10,7 kg
Front travel
100mm
Rear travel
100mm

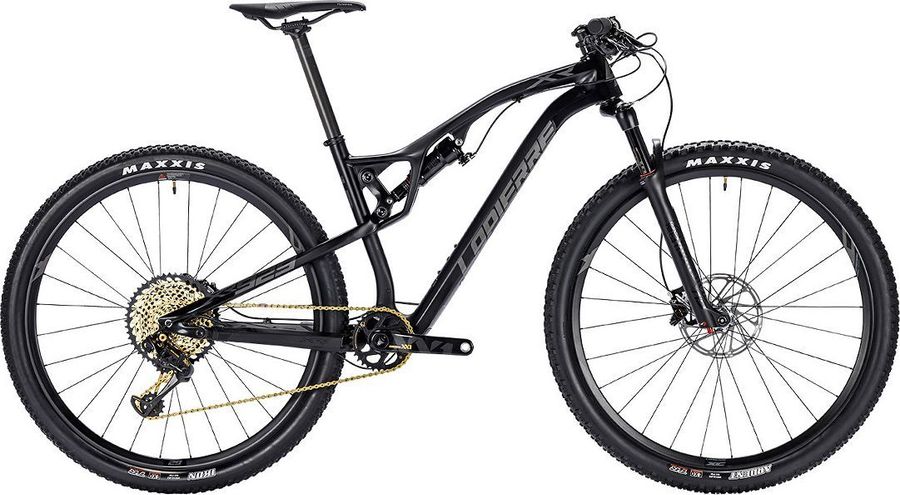

Lapierre XR 929 Ultimate 2018

About the Lapierre XR 929 Ultimate 2018

The Lapierre XR 929 Ultimate 2018 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , hydraulic disc brakes, and tubeless ready. The bike weighs approximately 10,7 kg.

Features

The Lapierre XR 929 Ultimate 2018 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Lapierre ST148A 7050 alloy, S/M - 60mm length, L/XL - 70mm length
Saddle
Fizik Tundra M5
Headset
FSA Orbit No.57ECF, 1.5E, zero-stack
Seatpost
Lapierre ST66-TC Carbon, 400mm length
Handlebar
Race Face Next Carbon, 720mm width
Brake lever
SRAM Level Ultimate Carbon, gold
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 Eagle Gold, 175mm length, S - 170mm length
Shifter
SRAM X01 Eagle, 12-speed
Bottom bracket
SRAM MTB 89/91.5, pressfit
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Carbon Fiber
Rear suspension
RockShox Deluxe RL
Body eyelet
Bearing, Standard
Compression tune
L, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
430
Model
RS-DLX-RL-B1
Name
Deluxe RL
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Front suspension
RockShox SID World Cup DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Charger 2
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
203mm, 220mm
Minimum rotor size
160mm
Model
FS-SID-WC-B3
Name
SID World Cup
Spring
DebonAir
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
Lapierre Carbon XC wheelset
Tires
Maxxis Ardent 2.25" / Maxxis Ikon 2.2" folding bead, 60tpi, tubeless ready
Rear hub
Lapierre Carbon XC wheelset
Front hub
Lapierre Carbon XC wheelset

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
430,0
470,0
510,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
582,0
607,0
627,0
652,0
d
Head tube length
100,0
100,0
120,0
120,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
-
-
-
-
i
Chainstay length
448,0
448,0
448,0
448,0
j
Bottom bracket drop
40,0
40,0
40,0
40,0
k
Stack height
594,0
594,0
612,0
612,0
l
Reach
419,0
444,0
459,0
484,0
m
Standover height
-
-
-
-
x
Bottom bracket height
334,0
334,0
334,0
334,0
y
Front center
-
-
-
-
