Lynskey Live Wire Shimano XT 1x11 2019

MTB Trail
Groupset
Shimano XT
Frame material
Titanium
Wheel size
27,5"
Suspension type
Hardtail
Front travel
130mm

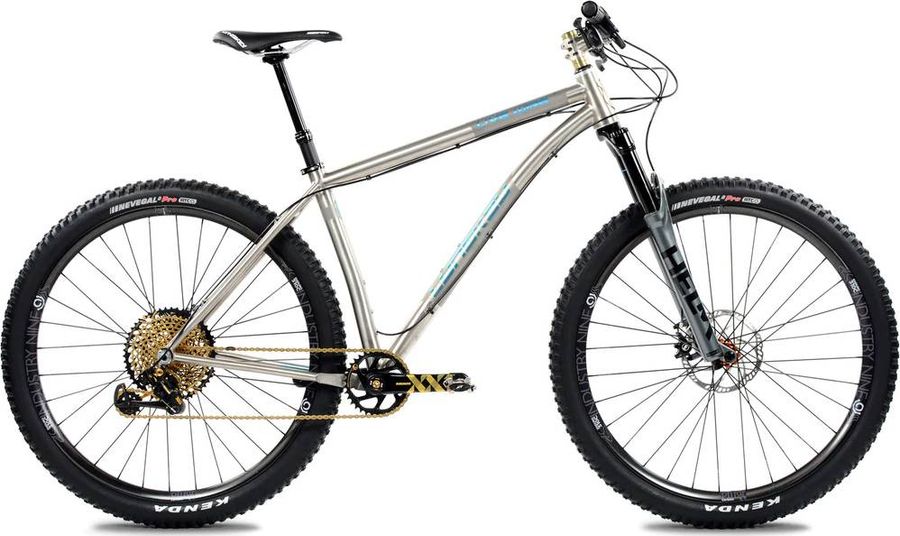

Lynskey Live Wire Shimano XT 1x11 2019

About the Lynskey Live Wire Shimano XT 1x11 2019

The Lynskey Live Wire Shimano XT 1x11 2019 is a Hardtail Trail Mountain Bike with a titanium frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes.

Features

The Lynskey Live Wire Shimano XT 1x11 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
FSA Omega stem +/- 6° Rise
Saddle
Lynskey Pro Saddle - Black
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Handlebar
FSA Comet Low Rise Handlebars
Discs
Shimano XT 160mm Rotors
Drivetrain
Crankset
Shimano XT FC-M8000-B1 Crankset 175mm
Shifter
Shimano XT M8000 11 Speed Shifter, I-Spec II
Bottom bracket
Shimano XT Bottom Bracket
Chain
Shimano CN-HG701 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG701-11
Pin link plate
SIL-TEC
Roller link plate
SIL-TEC
Type
HG-X11
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
Titanium
Front suspension
Cane Creek Helm Works
Wheels
Rims
Stans Arch 27.5 or Stans Arch 29
Tires
Kenda Nevegal 2 Tire 29x2.4 or Kenda Havok Pro 27.5x3.0

Geometry

Size 15.5" 17" 18.5" 21"
a
Seat tube length
394,0
432,0
470,0
533,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
569,0
598,0
629,0
653,0
d
Head tube length
111,0
114,0
123,0
134,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
89,0
89,0
86,0
88,0
h
Wheelbase
1108,0
1137,0
1170,0
1194,0
i
Chainstay length
438,0
438,0
438,0
438,0
j
Bottom bracket drop
61,0
61,0
61,0
61,0
k
Stack height
627,0
629,0
638,0
648,0
l
Reach
382,0
410,0
438,0
459,0
m
Standover height
781,0
806,0
832,0
883,0
x
Bottom bracket height
294,0
294,0
294,0
294,0
y
Front center
677,0
706,0
738,0
762,0
