BikeWise

Lynskey Live Wire Shimano XT 1x12 2020

MTB Trail
Groupset
Shimano XT
Frame material
Titanium
Wheel size
27,5"
Suspension type
Hardtail
Front travel
130mm
Lynskey Live Wire Shimano XT 1x12 2020

About the Lynskey Live Wire Shimano XT 1x12 2020

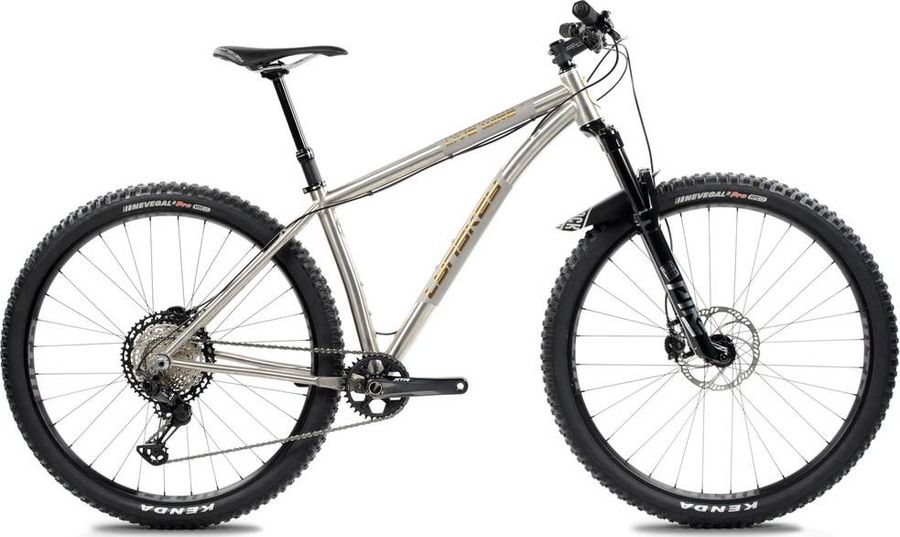

The Lynskey Live Wire Shimano XT 1x12 2020 is a Hardtail Trail Mountain Bike with a titanium frame. Equipped with a Shimano XT drivetrain. Its features include hydraulic disc brakes.

Features

The Lynskey Live Wire Shimano XT 1x12 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
FSA Omega stem +/- 6° Rise
Saddle
Lynskey Pro Saddle - Blk
Headset
Cane Creek 40 IS 42/28.6 - IS 52/40
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Handlebar
Afterburner Low Rise Handlebar 31.8 x 15 x 740mm Black
Drivetrain
Crankset
Shimano XT FC-M8100 Boost Crankset 175mm
Shifter
Shimano XT M8100-IL Right I-Spec EV 12 Speed Shifter
Bottom bracket
Shimano XT Bottom Bracket
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Frameset
Frame
Titanium
Front suspension
Cane Creek Helm Works
Wheels
Rims
WTB KOM Rims wih i9 1/1 Hubs
Tires
Kenda Nevegal 2 Pro ATC 29"x2.4" or Kenda Havok Pro 27.5"x3.0"

Geometry

Size 15.5" 17" 18.5" 21"
a
Seat tube length
394,0
432,0
470,0
533,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
569,0
598,0
629,0
653,0
d
Head tube length
111,0
114,0
123,0
134,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
89,0
89,0
86,0
88,0
h
Wheelbase
1108,0
1137,0
1170,0
1194,0
i
Chainstay length
438,0
438,0
438,0
438,0
j
Bottom bracket drop
61,0
61,0
61,0
61,0
k
Stack height
627,0
629,0
638,0
648,0
l
Reach
382,0
410,0
438,0
459,0
m
Standover height
781,0
806,0
832,0
883,0
x
Bottom bracket height
294,0
294,0
294,0
294,0
y
Front center
677,0
706,0
738,0
762,0
