Lynskey PRO 27.5 Shimano XT 1x11 2019

MTB Cross Country
Groupset
Shimano XT
Frame material
Titanium
Wheel size
27,5"
Suspension type
Rigid
Lynskey PRO 27.5 Shimano XT 1x11 2019

About the Lynskey PRO 27.5 Shimano XT 1x11 2019

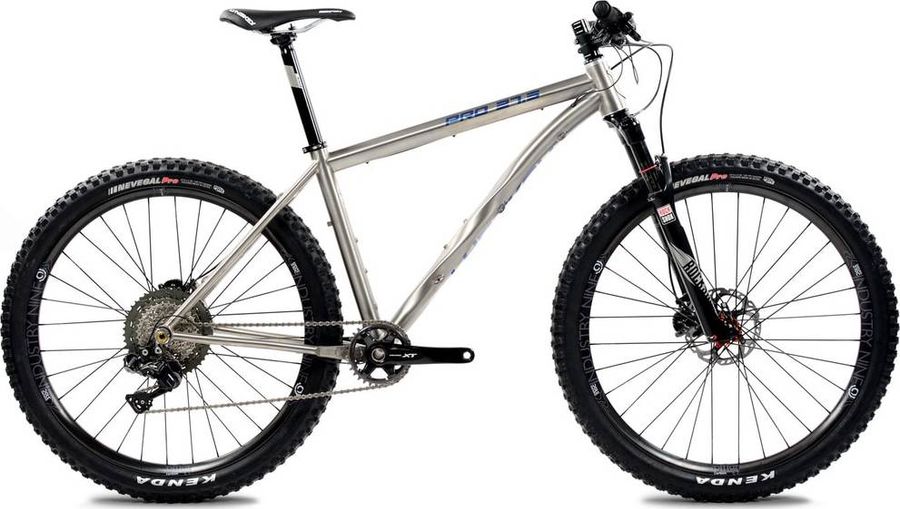

The Lynskey PRO 27.5 Shimano XT 1x11 2019 is a Rigid Cross Country Mountain Bike with a titanium frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes.

Features

The Lynskey PRO 27.5 Shimano XT 1x11 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
FSA Omega stem +/- 6° Rise
Saddle
Lynskey Pro Saddle - Black
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Handlebar
FSA Comet Low Rise Handlebars
Drivetrain
Crankset
Shimano XT FC-M8000-B1 Crankset 175mm
Shifter
Shimano XT M8000 11 Speed Shifter, I-Spec II
Bottom bracket
Shimano XT Bottom Bracket
Chain
Shimano CN-HG701 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG701-11
Pin link plate
SIL-TEC
Roller link plate
SIL-TEC
Type
HG-X11
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
Titanium
Front suspension
Cane Creek Helm
Wheels
Rims
Stans Arch 27.5
Tires
Kenda Nevegal2 Pro ATC 120tpi, 27.5x2.4

Geometry

Size 14" 15.5" 17" 18.5" 21"
a
Seat tube length
355,0
394,0
432,0
470,0
533,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
582,0
596,0
612,0
634,0
655,0
d
Head tube length
108,0
108,0
111,0
133,0
154,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
68,5º
f
Rake
44,0
44,0
44,0
44,0
44,0
g
Trail
93,0
92,0
93,0
93,0
93,0
h
Wheelbase
1098,0
1114,0
1130,0
1153,0
1175,0
i
Chainstay length
436,0
436,0
436,0
436,0
436,0
j
Bottom bracket drop
39,0
39,0
39,0
39,0
39,0
k
Stack height
583,0
583,0
586,0
606,0
626,0
l
Reach
411,0
426,0
441,0
456,0
471,0
m
Standover height
697,0
729,0
755,0
786,0
840,0
x
Bottom bracket height
316,0
316,0
316,0
316,0
316,0
y
Front center
665,0
680,0
697,0
719,0
742,0
