Lynskey PRO 27.5 Shimano XTR 1x11 2019

MTB Cross Country
Groupset
Shimano XTR
Frame material
Titanium
Wheel size
27,5"
Suspension type
Rigid

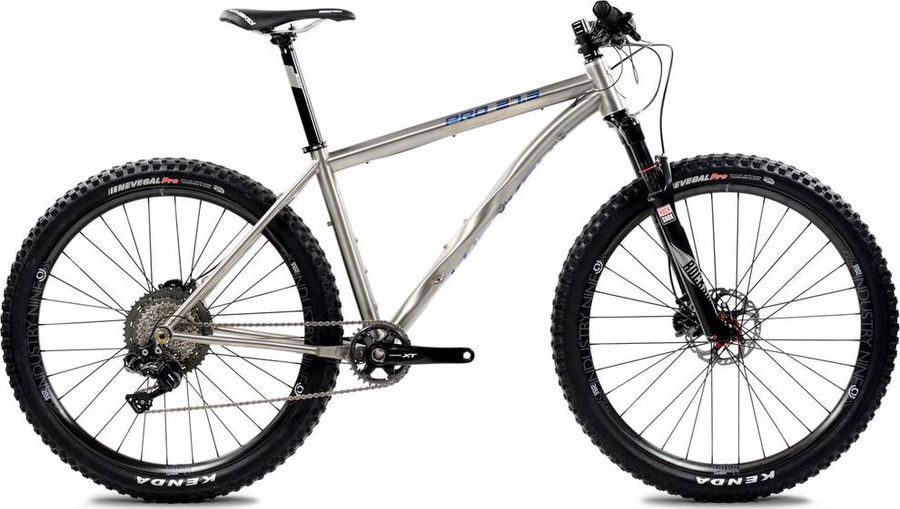

Lynskey PRO 27.5 Shimano XTR 1x11 2019

About the Lynskey PRO 27.5 Shimano XTR 1x11 2019

The Lynskey PRO 27.5 Shimano XTR 1x11 2019 is a Rigid Cross Country Mountain Bike with a titanium frame. Equipped with a Shimano XTR drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes.

Features

The Lynskey PRO 27.5 Shimano XTR 1x11 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
FSA Omega stem +/- 6° Rise
Saddle
Lynskey Pro Saddle - Black
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Handlebar
FSA Comet Low Rise Handlebars
Drivetrain
Crankset
Shimano XTR Boost Trail Crank Arms 175mm
Shifter
Shimano XTR M9000 11 Speed Shifter
Bottom bracket
Shimano XTR BB93 Bottom Bracket
Chain
Shimano CN-HG901 247 g
Average weight (g)
247
Chromizing treatment roller link pin
Model
CN-HG901-11
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano XTR RD-M9000-SGS 224 g SGS 11s
Average weight (g)
224
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket finish
Anodized
Bracket material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Cable fixing bolt finish
Black
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M9000-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
45T
Cassette
Shimano XTR CS-M9001 11s HG
Aluminum gear pieces
6
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Carbon spider arm pieces
2
Combination names
11-40T
Combination
11-13-15-17-19*-21*-24*-27*-31*-35*-40**
Compatible chain
HG-X11
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M9001
Speeds
11
Steel gear finish
Shot-Ni
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
1
Type
HG
Frameset
Frame
Titanium
Front suspension
Cane Creek Helm
Wheels
Rims
Stans Arch 27.5
Tires
Kenda Nevegal2 Pro ATC 120tpi, 27.5x2.4

Geometry

Size 14" 15.5" 17" 18.5" 21"
a
Seat tube length
355,0
394,0
432,0
470,0
533,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
582,0
596,0
612,0
634,0
655,0
d
Head tube length
108,0
108,0
111,0
133,0
154,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
68,5º
f
Rake
44,0
44,0
44,0
44,0
44,0
g
Trail
93,0
92,0
93,0
93,0
93,0
h
Wheelbase
1098,0
1114,0
1130,0
1153,0
1175,0
i
Chainstay length
436,0
436,0
436,0
436,0
436,0
j
Bottom bracket drop
39,0
39,0
39,0
39,0
39,0
k
Stack height
583,0
583,0
586,0
606,0
626,0
l
Reach
411,0
426,0
441,0
456,0
471,0
m
Standover height
697,0
729,0
755,0
786,0
840,0
x
Bottom bracket height
316,0
316,0
316,0
316,0
316,0
y
Front center
665,0
680,0
697,0
719,0
742,0
