Lynskey PRO 27.5 Shimano XTR 1x12 2019

MTB Cross Country
Groupset
Shimano XTR
Frame material
Titanium
Wheel size
27,5"
Suspension type
Rigid

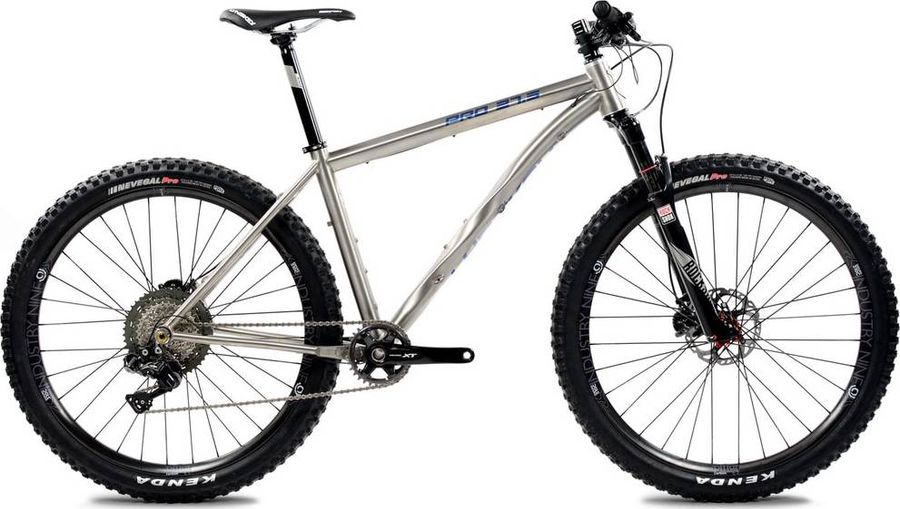

Lynskey PRO 27.5 Shimano XTR 1x12 2019

About the Lynskey PRO 27.5 Shimano XTR 1x12 2019

The Lynskey PRO 27.5 Shimano XTR 1x12 2019 is a Rigid Cross Country Mountain Bike with a titanium frame. Equipped with a Shimano XTR drivetrain. Its features include hydraulic disc brakes.

Features

The Lynskey PRO 27.5 Shimano XTR 1x12 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
FSA Omega stem +/- 6° Rise
Saddle
Lynskey Pro Saddle - Black
Headset
Cane Creek 40 IS 42/28.6- IS 52/40
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Handlebar
FSA Comet Low Rise Handlebars
Drivetrain
Crankset
Shimano XTR FC-M9120 Crank Arms 175mm
Shifter
Shimano XTR M9100 Right I-Spec EV 12 Speed Shifter
Bottom bracket
Shimano XTR BB93 Bottom Bracket
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Titanium
Front suspension
Cane Creek Helm MKII Air
Wheels
Rims
WTB KOM Rims with i9 1/1 Hubs
Tires
Kenda Nevegal2 Pro ATC 120tpi, 27.5x2.4

Geometry

Size 14" 15.5" 17" 18.5" 21"
a
Seat tube length
355,0
394,0
432,0
470,0
533,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
582,0
596,0
612,0
634,0
655,0
d
Head tube length
108,0
108,0
111,0
133,0
154,0
e
Head tube angle
68,5º
68,5º
68,5º
68,5º
68,5º
f
Rake
44,0
44,0
44,0
44,0
44,0
g
Trail
93,0
92,0
93,0
93,0
93,0
h
Wheelbase
1098,0
1114,0
1130,0
1153,0
1175,0
i
Chainstay length
436,0
436,0
436,0
436,0
436,0
j
Bottom bracket drop
39,0
39,0
39,0
39,0
39,0
k
Stack height
583,0
583,0
586,0
606,0
626,0
l
Reach
411,0
426,0
441,0
456,0
471,0
m
Standover height
697,0
729,0
755,0
786,0
840,0
x
Bottom bracket height
316,0
316,0
316,0
316,0
316,0
y
Front center
665,0
680,0
697,0
719,0
742,0
