BikeWise

Lynskey PRO 29 SRAM GX Eagle 1x12 2019

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Titanium
Wheel size
29"
Suspension type
Hardtail
Front travel
130mm
Lynskey PRO 29 SRAM GX Eagle 1x12 2019

About the Lynskey PRO 29 SRAM GX Eagle 1x12 2019

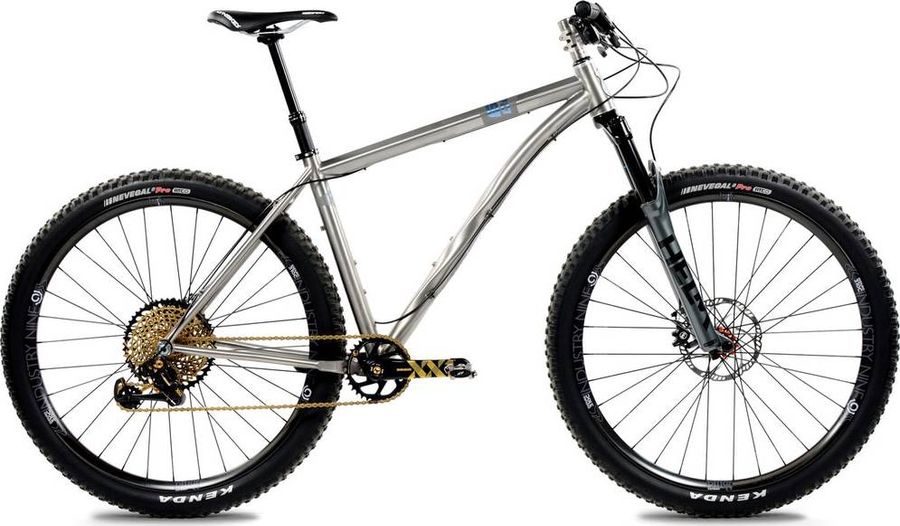

The Lynskey PRO 29 SRAM GX Eagle 1x12 2019 is a Hardtail Trail Mountain Bike with a titanium frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include hydraulic disc brakes.

Features

The Lynskey PRO 29 SRAM GX Eagle 1x12 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
FSA Omega stem +/- 6° Rise
Saddle
Lynskey Pro Saddle - Black
Headset
Cane Creek 40 IS 42/28.6 - IS 52/40
Seatpost
FSA XC-255 31.6 x 400 Seatpost
Handlebar
FSA Comet Low Rise Handlebars
Discs
Magura Storm SL 180mm Front Rotor, 160mm Rear Rotor
Brake lever
Magura MT8 Brake Lever with MT8 Disc Caliper
Drivetrain
Crankset
SRAM GX Eagle DUB 12s 175 w Direct Mount 32t X-SYNC 2- Lunar
Shifter
SRAM GX Eagle Trigger Shifter - 12 Speed - Discrete Clamp
Bottom bracket
SRAM DUB Bottom Bracket English Threaded 73mm
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Titanium
Front suspension
Cane Creek Helm MKII Air
Wheels
Rims
WTB KOM Rims with i9 1/1 Hubs
Tires
Kenda Nevegal 2 Tire 29x2.4 or Kenda Havok Pro 27.5x3.0

Geometry

Size 15.5" 17" 18.5" 21"
a
Seat tube length
394,0
432,0
470,0
533,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
590,0
605,0
621,0
637,0
d
Head tube length
108,0
108,0
112,0
116,0
e
Head tube angle
69,5º
69,5º
69,5º
69,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
87,0
87,0
86,0
82,0
h
Wheelbase
1116,0
1131,0
1148,0
1164,0
i
Chainstay length
439,0
439,0
439,0
439,0
j
Bottom bracket drop
58,0
58,0
58,0
66,0
k
Stack height
606,0
606,0
610,0
614,0
l
Reach
414,0
429,0
444,0
459,0
m
Standover height
711,0
743,0
778,0
882,0
x
Bottom bracket height
316,0
316,0
316,0
308,0
y
Front center
684,0
699,0
715,0
732,0
