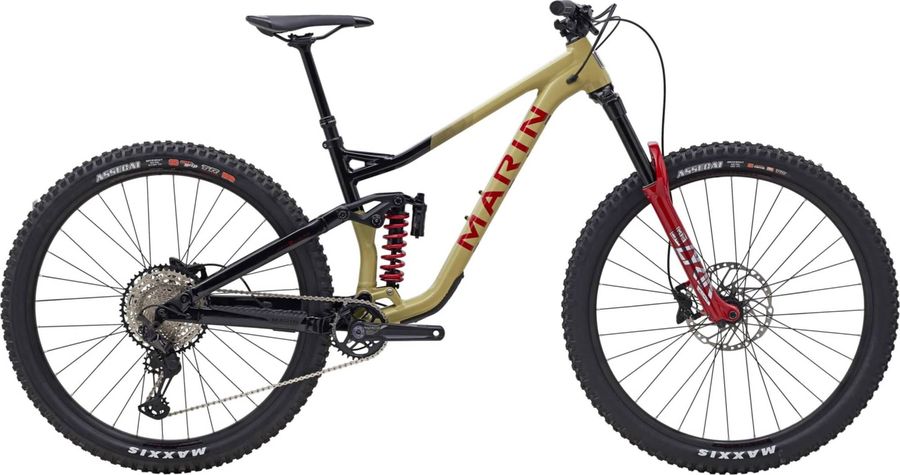

Marin Alpine Trail XR 2021

MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm
Marin Alpine Trail XR 2021

About the Marin Alpine Trail XR 2021

The Marin Alpine Trail XR 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Marin Alpine Trail XR 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Marin Single Clamp Locking
Components
Steam
Deity Copperhead 35mm, Black Ano
Saddle
Marin Speed Concept
Headset
FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seatpost
X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm
Handlebar
Deity Ridgeline, Stealth Finish, 35mm Clamp, 800mm Width
Brake lever
Shimano BL-M4100 Hydraulic, I-Spec EV Compatible
Drivetrain
Crankset
FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
Shifter
Shimano SLX 12-Speed, I-Spec EV
Bottom bracket
MEGAEVO BB, 73mm BSA Threaded
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
KMC X12
Frameset
Frame
Series 4 6061 Aluminum Frame, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
Front suspension
RockShox Lyrik Ultimate DebonAir 2003 g
Color
BoXXer Red, Gloss Black
Damper type
Charger 2.1 RC2, Charger 2.1 RCT3
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-ULT-C2
Name
Lyrik Ultimate
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, RC2 damper, Maxle Stealth
Weight
2003
Wheel size
27.5", 29"
Wheels
Rims
Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
Tires
Front: Maxxis Assegai 29x2.5”, MAXX TERRA, EXO+, Tubeless Compatible; Rear: Maxxis Assegai 29x2.5”, MAXX GRIP, DoubleDown, Tubeless Compatible

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
400,0
425,0
430,0
b
Seat tube angle
78,0º
78,0º
78,0º
78,0º
c
Top tube length
568,7
596,0
622,0
659,0
d
Head tube length
100,0
110,0
115,0
130,0
e
Head tube angle
63,5º
63,5º
63,5º
63,5º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
138,0
136,0
136,0
136,0
h
Wheelbase
1206,0
1236,0
1263,0
1304,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
35,0
35,0
35,0
35,0
k
Stack height
626,0
635,0
639,0
650,0
l
Reach
437,0
462,0
487,0
522,0
m
Standover height
721,0
723,0
739,0
741,0
x
Bottom bracket height
342,0
342,0
342,0
342,0
y
Front center
771,0
801,0
828,0
869,0
