Marin Bobcat Trail 4 2018
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Front travel
100mm

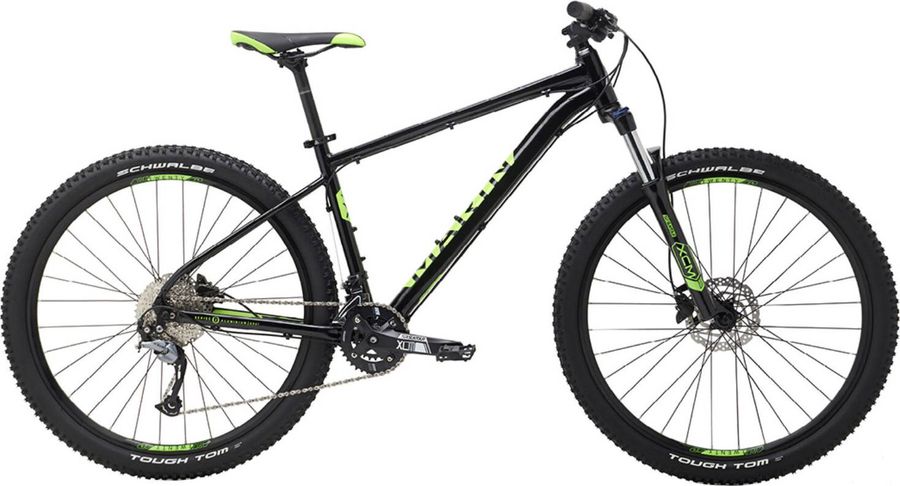

About the Marin Bobcat Trail 4 2018
The Marin Bobcat Trail 4 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 18 gears (2x9). Its features include hydraulic disc brakes.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Marin Dual Density
|
|---|---|
|
Pedals
|
Nylon Platform
|
|
Steam
|
Marin Alloy, 60mm
|
|---|---|
|
Saddle
|
Marin MTB
|
|
Headset
|
FSA No.10-P
|
|
Seatpost
|
Marin Alloy
|
|
Handlebar
|
Marin Mini-Riser, 10mm Rise, 720mm Width
|
|
Brake lever
|
Shimano BL-M315 Hydraulic
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
SR Suntour, XCM, 36/22T
|
|---|---|
|
Shifter
|
Shimano Altus 2x9-Speed
|
|
Bottom bracket
|
Sealed Cartridge Bearings, Square Taper
|
|
Front derailleur
|
Micro Shift, FD-M462B, Band Clamp
|
|
Cassette
|
Sunrace M98 11-36T 9-speed
|
|
Chain
|
KMC X9
|
|
Rear derailleur
|
Shimano Altus RD-M2000
SGS
9s
|
|
|
|
|
Frame
|
Series 2 6061 Aluminum, 27.5" or 29” Wheels, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount
|
|---|---|
|
Front suspension
|
SR Suntour XCT HLO
|
|
Rims
|
Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
|
|---|---|
|
Tires
|
Schwalbe Tough Tom, 27.5" or 29” x 2.25”
|
|
Spokes
|
14g Black Stainless Steel
|
|
Rear hub
|
Joytech, Centerlock Disc, 32H
|
|
Front hub
|
Joytech, Centerlock Disc, 32H
|
Geometry
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
|
a
Seat tube length
|
330,0
|
381,0
|
431,0
|
482,0
|
520,0
|
559,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
573,0
|
588,0
|
605,0
|
625,0
|
642,0
|
653,0
|
|
d
Head tube length
|
100,0
|
105,0
|
110,0
|
115,0
|
120,0
|
125,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
44,0
|
42,0
|
42,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
96,0
|
96,0
|
96,0
|
103,0
|
103,0
|
103,0
|
|
h
Wheelbase
|
1096,23
|
1111,77
|
1129,32
|
1168,71
|
1186,25
|
1197,8
|
|
i
Chainstay length
|
428,0
|
428,0
|
428,0
|
443,0
|
443,0
|
443,0
|
|
j
Bottom bracket drop
|
48,0
|
48,0
|
48,0
|
48,0
|
48,0
|
48,0
|
|
k
Stack height
|
576,56
|
581,19
|
585,83
|
616,6
|
621,24
|
625,88
|
|
l
Reach
|
407,1
|
420,77
|
436,44
|
447,62
|
463,29
|
472,96
|
|
m
Standover height
|
637,7
|
677,36
|
721,37
|
776,55
|
807,93
|
836,88
|
|
x
Bottom bracket height
|
304,5
|
304,5
|
304,5
|
311,0
|
311,0
|
311,0
|
|
y
Front center
|
673,0
|
688,0
|
706,0
|
730,0
|
747,0
|
759,0
|
