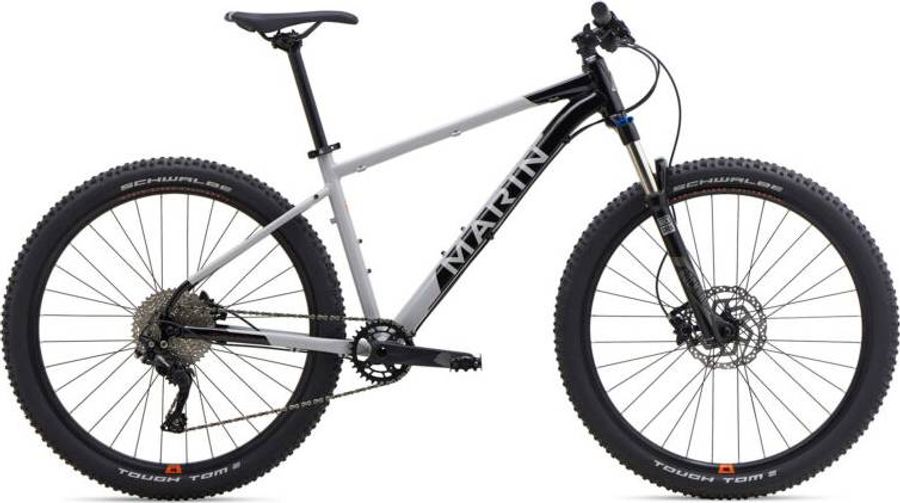

Marin Bobcat Trail 5 2019
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

About the Marin Bobcat Trail 5 2019
The Marin Bobcat Trail 5 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include hydraulic disc brakes.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
Grip
|
Marin MTB, Closed End
|
---|---|
Pedals
|
Nylon Platform
|
Steam
|
Marin Alloy, 45mm
|
---|---|
Saddle
|
Marin MTB
|
Headset
|
FSA No.10-P
|
Seatpost
|
Marin Alloy
|
Handlebar
|
Marin Riser, 12mm Rise, 780mm Width
|
Brake lever
|
Shimano BL-MT201
|
Brakes
|
Shimano BR-MT200
Hydraulic disc brake
2 piston
|
BL-MT200 SM-RT26* |
Crankset
|
Marin Forged Alloy 1x10, Hollow Spindle, Steel Narrow-Wide 32T Chainring, 76mm BCD
|
---|---|
Shifter
|
Shimano Deore 1x10-Speed
|
Bottom bracket
|
External Sealed Cartridge Bearings
|
Cassette
|
Sunrace 10-speed
|
Chain
|
KMC X10
|
Rear derailleur
|
Shimano Deore RD-M6000-SGS
SGS
10s
|
|
Frame
|
Series 2 6061 Aluminum, 27.5" or 29” Wheels, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount
|
---|---|
Front suspension
|
RockShox TK Silver
|
Rims
|
Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
|
---|---|
Tires
|
Vee Tire, Crown Gem 29x2.3"/27.5x2.3", Dual Control Compound, Wire Bead
|
Spokes
|
14g Black Stainless Steel
|
Rear hub
|
Forged Alloy, Centerlock Disc, 32H
|
Front hub
|
Forged Alloy, Centerlock Disc, 32H
|
Geometry
Size | XS | SM | MD | LG | XL | XXL |
---|---|---|---|---|---|---|
a
Seat tube length
|
330,0
|
381,0
|
431,0
|
482,0
|
520,0
|
559,0
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
72,7º
|
72,7º
|
72,7º
|
c
Top tube length
|
573,0
|
588,0
|
605,0
|
625,0
|
642,0
|
653,0
|
d
Head tube length
|
100,0
|
105,0
|
110,0
|
115,0
|
120,0
|
125,0
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
f
Rake
|
44,0
|
44,0
|
44,0
|
51,0
|
51,0
|
51,0
|
g
Trail
|
96,0
|
96,0
|
96,0
|
89,0
|
89,0
|
89,0
|
h
Wheelbase
|
1096,23
|
1111,77
|
1129,32
|
1168,71
|
1186,25
|
1197,8
|
i
Chainstay length
|
428,0
|
428,0
|
428,0
|
443,0
|
443,0
|
443,0
|
j
Bottom bracket drop
|
48,0
|
48,0
|
48,0
|
61,0
|
61,0
|
61,0
|
k
Stack height
|
576,56
|
581,19
|
585,83
|
616,6
|
621,24
|
625,88
|
l
Reach
|
407,1
|
420,77
|
436,44
|
447,62
|
463,29
|
472,96
|
m
Standover height
|
637,7
|
677,36
|
721,37
|
776,55
|
807,93
|
836,88
|
x
Bottom bracket height
|
304,5
|
304,5
|
304,5
|
311,0
|
311,0
|
311,0
|
y
Front center
|
673,0
|
688,0
|
706,0
|
732,0
|
750,0
|
761,0
|
