Marin Bolinas Ridge 1 2018
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm
About the Marin Bolinas Ridge 1 2018

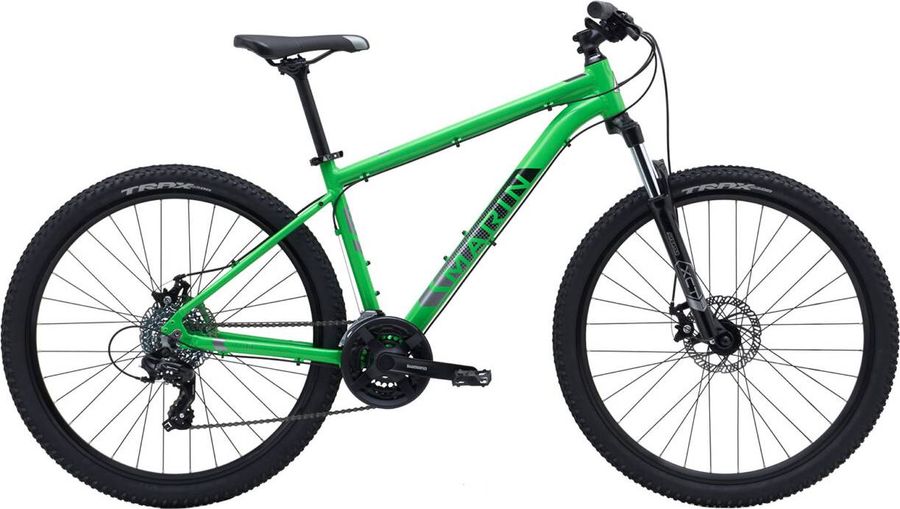

The Marin Bolinas Ridge 1 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 21 gears (3x7).
Specifications
|
Grip
|
Marin Dual Density
|
|---|---|
|
Pedals
|
Nylon Platform
|
|
Steam
|
Marin Alloy, 60mm
|
|---|---|
|
Saddle
|
Marin MTB
|
|
Headset
|
FSA No.10-P
|
|
Seatpost
|
Marin Alloy
|
|
Handlebar
|
Marin Riser, 25mm Rise, 700mm Width
|
|
Brake lever
|
Shimano w/ Integrated Shifters
|
|
Brakes
|
Tektro HD-M280
|
|
Crankset
|
Shimano FC-TY301, 42/34/24T
|
|---|---|
|
Shifter
|
Shimano Tourney 3x7-Speed
|
|
Bottom bracket
|
Sealed Cartridge Bearings, Square Taper
|
|
Front derailleur
|
Shimano FD-TX500
|
|
Rear derailleur
|
Shimano Tourney RD-TY300
SGS
7/6s
|
|
|
|
|
Cassette
|
Sunrace M40 11-34T 7-speed
|
|
Chain
|
KMC Z50
|
|
Frame
|
Series 1 6061 Aluminum, 27.5” Wheels, 68mm BB shell, 135mm Forged Dropouts, IS Seatstay Disc Mounts
|
|---|---|
|
Front suspension
|
SR Suntour XCT DS
|
|
Rims
|
Marin, Double Wall Alloy
|
|---|---|
|
Tires
|
Mountain Tire, 27.5”x2.1"
|
|
Spokes
|
15g Black Stainless Steel
|
|
Rear hub
|
Formula, 32H
|
|
Front hub
|
Formula, 32H
|
Geometry
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
|
a
Seat tube length
|
330,0
|
381,0
|
431,0
|
482,0
|
520,0
|
559,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
573,0
|
588,0
|
605,0
|
625,0
|
642,0
|
653,0
|
|
d
Head tube length
|
100,0
|
105,0
|
110,0
|
115,0
|
120,0
|
125,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
89,0
|
89,0
|
89,0
|
89,0
|
89,0
|
89,0
|
|
h
Wheelbase
|
1074,57
|
1089,94
|
1107,3
|
1127,67
|
1145,03
|
1156,4
|
|
i
Chainstay length
|
428,0
|
428,0
|
428,0
|
428,0
|
428,0
|
428,0
|
|
j
Bottom bracket drop
|
48,0
|
48,0
|
48,0
|
48,0
|
48,0
|
48,0
|
|
k
Stack height
|
581,04
|
585,71
|
590,38
|
595,05
|
599,72
|
604,38
|
|
l
Reach
|
394,75
|
408,32
|
423,89
|
442,46
|
458,04
|
467,61
|
|
m
Standover height
|
643,41
|
683,72
|
725,63
|
766,61
|
796,52
|
826,84
|
|
x
Bottom bracket height
|
304,5
|
304,5
|
304,5
|
304,5
|
304,5
|
304,5
|
|
y
Front center
|
651,0
|
666,0
|
684,0
|
704,0
|
721,0
|
733,0
|
