Marin Hawk Hill 2 2019

MTB Trail
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

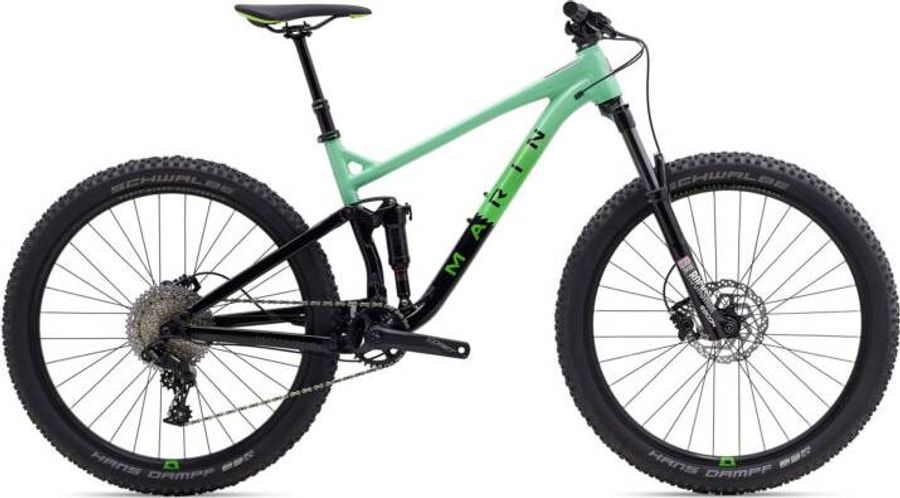

Marin Hawk Hill 2 2019

About the Marin Hawk Hill 2 2019

The Marin Hawk Hill 2 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Marin Hawk Hill 2 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Marin Single Clamp Locking
Pedals
- - -
Components
Steam
Marin 3D Forged Alloy, 35mm
Saddle
Marin Speed Concept
Headset
FSA No 57E, Sealed Cartridge Bearings, 11/8"x11/2”
Seatpost
X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, All Other Sizes: 150mm Travel
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 28mm Rise, 780mm Width, 4º Up, 9º Back
Brake lever
Shimano BR-MT201 Hydraulic Disc
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
Shifter
SRAM NX 1x11-Speed
Bottom bracket
External Sealed Cartridge Bearings
Front derailleur
- - -
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
Sunrace MX8 11-46T 11-speed
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Series 3 6061 Aluminum Frame, 27.5” Wheels, 120mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe R
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L3, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-R-B1
Name
Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
Tires
Vee Tire, Crown Gem 27.5x2.3", Dual Control Compound, Folding Bead, Tubeless Compatible
Spokes
14g Black Stainless Steel
Rear hub
Forged Alloy, 148x12mm, Quad Sealed Bearings, Centerlock Disc, 32H, Standard Freehub Body
Front hub
Forged Alloy, 110x15mm, Centerlock Disc, 32H

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
425,0
470,0
515,0
b
Seat tube angle
71,0º
71,0º
71,0º
71,0º
c
Top tube length
583,8
605,1
629,9
648,9
d
Head tube length
110,0
120,0
125,0
130,0
e
Head tube angle
-
-
-
-
f
Rake
42,0
42,0
42,0
42,0
g
Trail
-627,0
-828,0
-952,0
-1088,0
h
Wheelbase
1143,3
1165,3
1189,3
1211,3
i
Chainstay length
427,0
427,0
427,0
427,0
j
Bottom bracket drop
18,0
18,0
18,0
18,0
k
Stack height
580,6
585,2
594,3
598,9
l
Reach
422,0
442,0
462,0
482,0
m
Standover height
662,0
699,0
724,0
765,0
x
Bottom bracket height
338,5
338,5
338,5
338,5
y
Front center
717,0
739,0
763,0
785,0
