Marin Pine Mountain 1 2020

MTB Trail
Groupset
Shimano Deore
Frame material
Steel
Wheel size
29"
Suspension type
Hardtail
Front travel
120mm

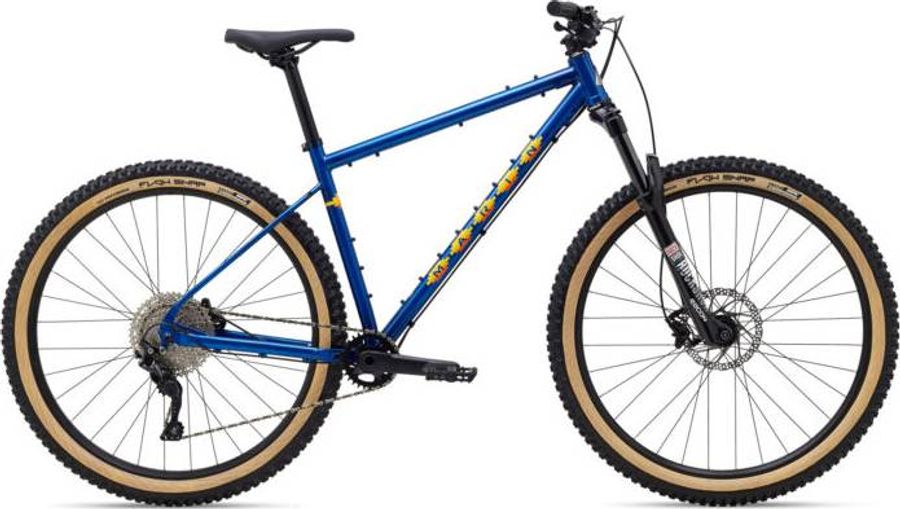

Marin Pine Mountain 1 2020

About the Marin Pine Mountain 1 2020

The Marin Pine Mountain 1 2020 is a Hardtail Trail Mountain Bike with a steel frame. Equipped with a Shimano Deore drivetrain of 11 gears (1x11). Its features include boost 110 , hydraulic disc brakes, and tapered head tube.

Features

The Marin Pine Mountain 1 2020 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Marin BearPaw Locking
Pedals
Nylon Platform
Components
Steam
Marin 3D Forged Alloy, 35mm
Saddle
Marin Pine Mountain Trail
Headset
FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seatpost
Marin Alloy, 30.9mm
Handlebar
Marin Pine Mountain Trail Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep
Brake lever
Shimano MT400 Hydraulic
Brakes
Shimano BR-MT420 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT420
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Resin
Recommended brake lever
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30 *
SM-RT54 *
SM-RT56 *
SM-RT64
Drivetrain
Crankset
Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow-Wide 32T Chainring, 76mm BCD
Shifter
MicroSHIFT 1x11-Speed
Bottom bracket
External Sealed Cartridge Bearings
Rear derailleur
Shimano Deore RD-M5100-SGS SGS 11s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X11 11-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M5100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
40T
Cassette
Sunrace MX8 11-46T 11-speed
Chain
KMC X11
Frameset
Frame
Series 2 Double Butted CrMo, 29" Wheels, Boost 141x9mm Open Dropout, 73mm Threaded BB, Plentiful Gear Mounts
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible
Tires
Vee Tire Flow Snap, 29x2.6", Wire Bead
Spokes
14g Black Stainless Steel
Rear hub
Forged Alloy, 141x9mm, 6-Bolt Disc, 32H
Front hub
Forged Alloy, 110x15mm, 6-Bolt Disc, 32H

Geometry

Size SM MD LG XL
a
Seat tube length
381,0
431,0
482,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
570,0
591,0
617,3
649,6
d
Head tube length
95,0
100,0
105,0
115,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
107,0
107,0
107,0
107,0
h
Wheelbase
1135,5
1157,5
1184,5
1218,5
i
Chainstay length
428,0
428,0
428,0
428,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
k
Stack height
624,0
628,6
633,2
642,0
l
Reach
408,0
428,0
453,0
483,0
m
Standover height
692,0
738,0
782,0
815,0
x
Bottom bracket height
315,0
315,0
315,0
315,0
y
Front center
714,0
736,0
763,0
797,0
