Groupset
Shimano Deore
Frame material
Steel
Wheel size
29"
Suspension type
Hardtail
Front travel
120mm

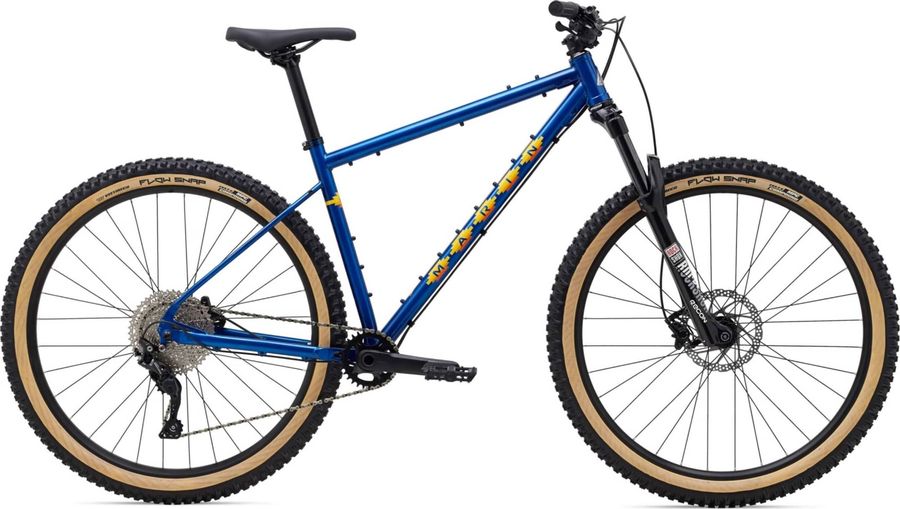

About the Marin Pine Mountain 1 2021
The Marin Pine Mountain 1 2021 is a Hardtail Trail Mountain Bike with a steel frame. Equipped with a Shimano Deore drivetrain of 11 gears (1x11). Its features include boost 110 , hydraulic disc brakes, and tapered head tube.
Features
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Grip
|
Marin BearPaw Locking
|
|---|---|
|
Pedals
|
Nylon Platform
|
|
Steam
|
Marin 3D Forged Alloy, 35mm
|
|---|---|
|
Saddle
|
Marin Pine Mountain Trail
|
|
Headset
|
FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
|
|
Seatpost
|
Marin Alloy, 30.9mm
|
|
Handlebar
|
Marin Bedroll Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep
|
|
Brake lever
|
Shimano MT400 Hydraulic
|
|
Crankset
|
Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring, 76mm BCD
|
|---|---|
|
Shifter
|
Shimano Deore 11-Speed
|
|
Bottom bracket
|
External Sealed Cartridge Bearings
|
|
Rear derailleur
|
Shimano Deore RD-M5100-SGS
SGS
11s
|
|
|
|
|
Chain
|
KMC X11
|
|
Cassette
|
Sunrace 11-speed
|
|
Frame
|
Series 2 Double Butted CrMo, 29" Wheels, Boost 141x9mm Open Dropout, 73mm Threaded BB, Plentiful Gear Mounts
|
|---|---|
|
Front suspension
|
RockShox Recon RL
Solo Air
|
|
|
|
|
Rims
|
Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible
|
|---|---|
|
Tires
|
Vee Tire Flow Snap, 29x2.6", Wire Bead
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
381,0
|
431,0
|
482,0
|
520,0
|
|
b
Seat tube angle
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
570,0
|
591,0
|
617,3
|
649,6
|
|
d
Head tube length
|
95,0
|
100,0
|
105,0
|
115,0
|
|
e
Head tube angle
|
66,5º
|
66,5º
|
66,5º
|
66,5º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
107,0
|
107,0
|
107,0
|
107,0
|
|
h
Wheelbase
|
1135,5
|
1157,5
|
1184,5
|
1218,5
|
|
i
Chainstay length
|
428,0
|
428,0
|
428,0
|
428,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
624,0
|
628,6
|
633,2
|
642,0
|
|
l
Reach
|
408,0
|
428,0
|
453,0
|
483,0
|
|
m
Standover height
|
692,0
|
738,0
|
782,0
|
815,0
|
|
x
Bottom bracket height
|
315,0
|
315,0
|
315,0
|
315,0
|
|
y
Front center
|
714,0
|
736,0
|
763,0
|
797,0
|
