Groupset
Shimano SLX
Frame material
Steel
Wheel size
29"
Suspension type
Hardtail
Front travel
120mm

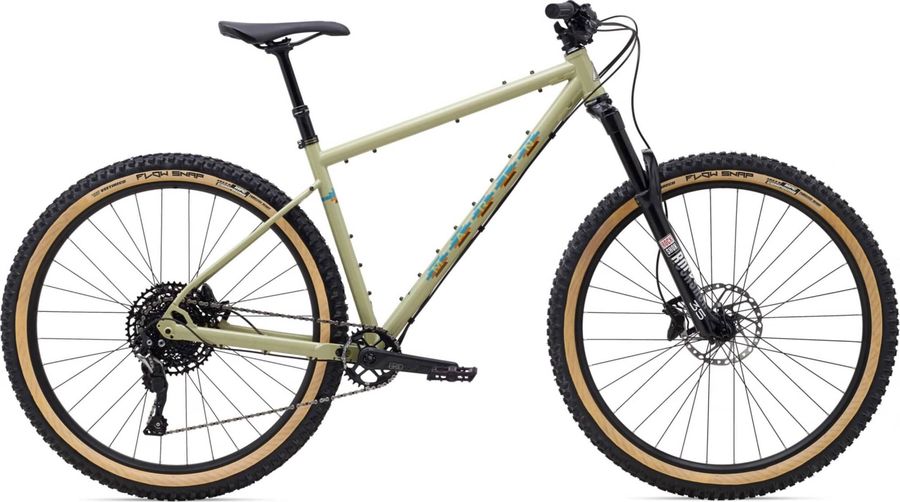

About the Marin Pine Mountain 2 2021
The Marin Pine Mountain 2 2021 is a Hardtail Trail Mountain Bike with a steel frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Marin BearPaw Locking
|
|---|
|
Steam
|
Marin 3D Forged Alloy, 35mm
|
|---|---|
|
Saddle
|
Marin Pine Mountain Trail
|
|
Headset
|
FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
|
|
Seatpost
|
TranzX Dropper Post, YSP23 w/ 1x Remote, Size S 150mm Travel, All Other Sizes: 170mm Travel, 30.9mm
|
|
Handlebar
|
Marin Bedroll Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep
|
|
Brake lever
|
Shimano MT500 Hydraulic
|
|
Crankset
|
FSA Grid, Modular 1x, 32T Direct Mount MegaTooth Chainring
|
|---|---|
|
Shifter
|
Shimano SLX 12-Speed
|
|
Bottom bracket
|
FSA Outboard Cartridge Bearings
|
|
Cassette
|
Shimano SLX CS-M7100-12
HYPERGLIDE+
|
|
10-51T 10-51T: 534g |
|
|
Chain
|
KMC X12
|
|
Rear derailleur
|
Shimano SLX RD-M7100
313 g
SGS
12s
|
|
|
|
|
Front suspension
|
RockShox FS 35, 120mm Travel, DebonAir, Alloy Tapered Steerer, 110x15mm Boost Spacing, Maxle Lite, 44mm Offset
|
|---|---|
|
Frame
|
Series 3 Double Butted and Heat Treated CrMo, 29" Wheels, Custom Cast Boost 148x12mm Dropouts, 148x12mm Thru-Axle, 73mm Threaded BB, Plentiful Gear Mounts
|
|
Rims
|
Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible
|
|---|---|
|
Tires
|
Vee Tire Flow Snap, 29x2.6", Folding Bead, Tubeless Ready
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
381,0
|
431,0
|
482,0
|
520,0
|
|
b
Seat tube angle
|
74,5º
|
74,5º
|
74,5º
|
74,5º
|
|
c
Top tube length
|
570,0
|
591,0
|
617,3
|
649,6
|
|
d
Head tube length
|
95,0
|
100,0
|
105,0
|
115,0
|
|
e
Head tube angle
|
66,5º
|
66,5º
|
66,5º
|
66,5º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
107,0
|
107,0
|
107,0
|
107,0
|
|
h
Wheelbase
|
1135,5
|
1157,5
|
1184,5
|
1218,5
|
|
i
Chainstay length
|
428,0
|
428,0
|
428,0
|
428,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
624,0
|
628,6
|
633,2
|
642,0
|
|
l
Reach
|
408,0
|
428,0
|
453,0
|
483,0
|
|
m
Standover height
|
692,0
|
738,0
|
782,0
|
815,0
|
|
x
Bottom bracket height
|
315,0
|
315,0
|
315,0
|
315,0
|
|
y
Front center
|
714,0
|
736,0
|
763,0
|
797,0
|
