Marin Rift Zone 2 2018

MTB Trail
Groupset
SRAM NX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

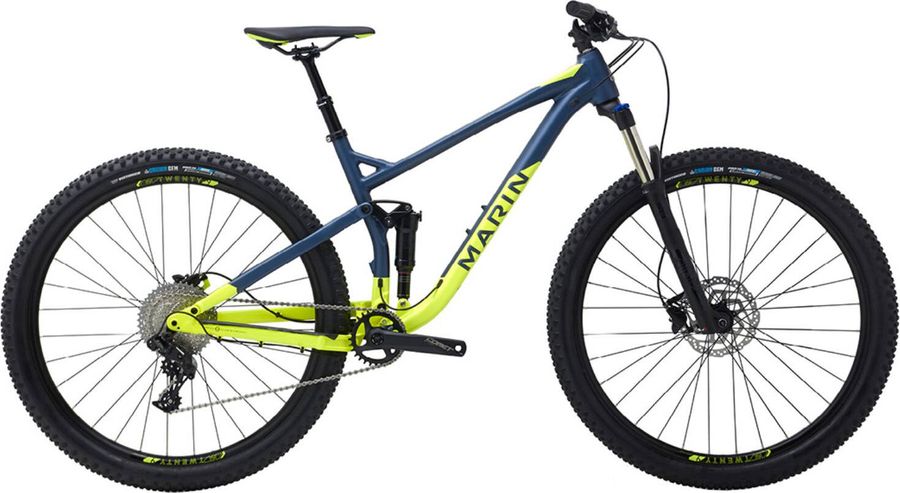

Marin Rift Zone 2 2018

About the Marin Rift Zone 2 2018

The Marin Rift Zone 2 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Marin Rift Zone 2 2018 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Marin Single Clamp Locking
Pedals
- - -
Components
Steam
Marin 3D Forged Alloy, 45mm
Saddle
Marin Speed Concept
Headset
FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seatpost
TranzX Dropper Post, YSP15 w/ 1x Remote, Size S 100mm Travel, All Other Sizes: 120mm Travel
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4º Up, 9º Back
Brake lever
Shimano BL-315 Hydraulic
Brakes
Shimano Altus BR-M315
Drivetrain
Crankset
FSA Comet, Modular 1x, 30T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
Shifter
SRAM NX 1x11-Speed
Bottom bracket
External Sealed Cartridge Bearings
Front derailleur
- - -
Cassette
Sunrace MX8 11-42T 11-speed
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Chain
KMC X11
Frameset
Frame
Series 3 6061 Aluminum Frame, 29” Wheels, 120mm Travel MultiTrac Suspension Platform, Seatstay Mounted Post Mount Disc Brakes, 148x12mm Boost Thru-Axle
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe R
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L3, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-R-B1
Name
Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Tires
Vee Tire, Crown Gem 29x2.3", Dual Control Compound, Folding Bead, Tubeless Compatible
Spokes
14g Black Stainless Steel
Rear hub
Formula, 148x12mm, Quad Sealed Bearings, Centerlock Disc, 32H
Front hub
Formula, 110x15mm, Centerlock Disc, 32H

Geometry

Size SM MD LG XL
a
Seat tube length
385,0
420,0
450,0
480,0
b
Seat tube angle
74,8º
74,8º
74,8º
74,8º
c
Top tube length
587,0
614,0
638,0
672,0
d
Head tube length
100,0
105,0
110,0
115,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
111,0
112,0
111,0
112,0
h
Wheelbase
1136,0
1158,0
1180,0
1211,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
38,5
38,5
38,5
38,5
k
Stack height
611,0
616,0
621,0
625,0
l
Reach
422,0
443,0
462,0
492,0
m
Standover height
686,0
715,0
727,0
752,0
x
Bottom bracket height
337,5
337,5
337,5
337,5
y
Front center
702,0
724,0
746,0
777,0
