BikeWise

Marin Rift Zone 27.5 1 2021

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

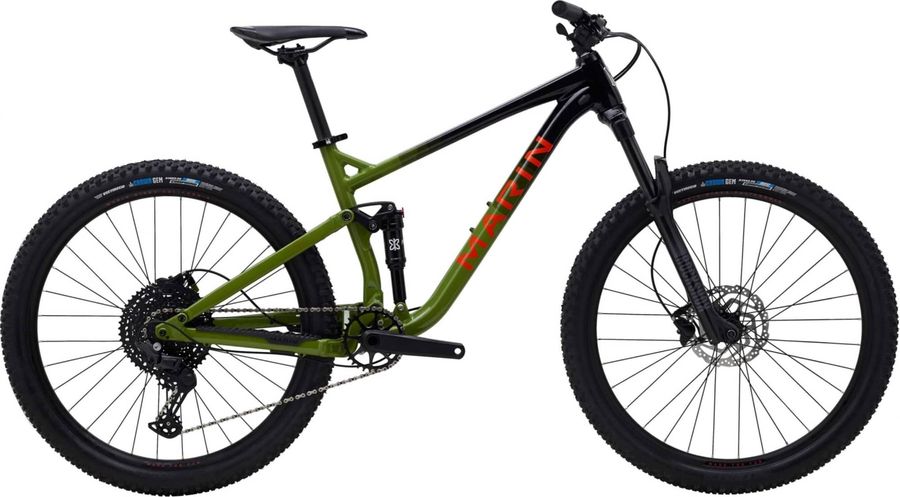

Marin Rift Zone 27.5 1 2021

About the Marin Rift Zone 27.5 1 2021

The Marin Rift Zone 27.5 1 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Marin Rift Zone 27.5 1 2021 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Marin MTN, Closed End
Components
Steam
Marin 3D Forged Alloy, 35mm
Saddle
Marin Speed Concept
Headset
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seatpost
Marin Alloy, 30.9mm
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Brake lever
Shimano BL-MT201 Hydraulic
Drivetrain
Crankset
Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
Shifter
Shimano Deore, 11-Speed, SL-5100R
Bottom bracket
External Sealed Cartridge Bearing
Rear derailleur
Shimano Deore RD-M5100-SGS SGS 11s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X11 11-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M5100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
40T
Chain
KMC X11
Cassette
Sunrace 11-speed
Frameset
Frame
Series 3 6061 Aluminum Frame, 27.5” Wheels, 120mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs
Front suspension
RockShox Recon Silver RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (27.5"), 42mm (29"), 46mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCNS-RL-D1
Name
Recon Silver RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
Tires
Vee Tire Crown Gem 27.5x2.3", Dual Control Compound, Tubeless Ready

Geometry

Size XS SM MD LG XL
a
Seat tube length
330,0
380,0
425,0
470,0
515,0
b
Seat tube angle
75,0º
74,7º
74,5º
74,3º
74,1º
c
Top tube length
568,6
584,8
606,1
630,9
649,9
d
Head tube length
105,0
110,0
120,0
125,0
130,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
66,5º
f
Rake
42,0
42,0
42,0
42,0
42,0
g
Trail
109,0
109,0
109,0
109,0
109,0
h
Wheelbase
1127,4
1144,3
1166,3
1190,3
1212,3
i
Chainstay length
428,0
428,0
428,0
428,0
428,0
j
Bottom bracket drop
18,0
18,0
18,0
18,0
18,0
k
Stack height
577,0
581,6
586,2
595,3
599,9
l
Reach
408,0
423,0
443,0
463,0
483,0
m
Standover height
645,0
663,0
700,0
725,0
766,0
x
Bottom bracket height
338,5
338,5
338,5
338,5
338,5
y
Front center
700,0
717,0
739,0
763,0
785,0
