Marin Rift Zone 3 2018

MTB Trail
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
120mm
Rear travel
120mm

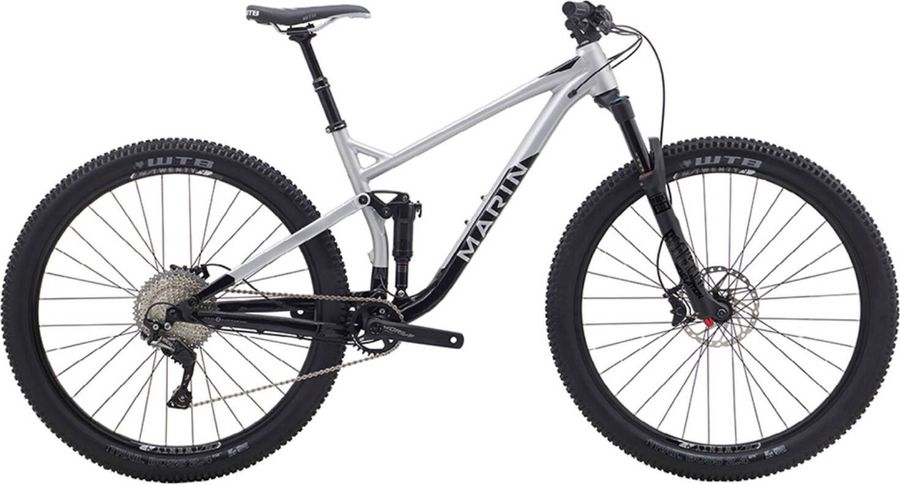

Marin Rift Zone 3 2018

About the Marin Rift Zone 3 2018

The Marin Rift Zone 3 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Marin Rift Zone 3 2018 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Marin Single Clamp Locking
Pedals
- - -
Components
Steam
Marin 3D Forged Alloy, 45mm
Saddle
WTB Volt Comp
Headset
FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seatpost
TranzX Dropper Post, YSP15 w/ 1x Remote, Size S 100mm Travel, All Other Sizes: 120mm Travel
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4º Up, 9º Back
Brake lever
Shimano Deore M6000 Hydraulic
Brakes
Shimano Deore BR-M6000 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series Black
Secondary color
Series Silver *
color.3
Black (SHIMANO logo) ***
Hose joint
Straight
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M6000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal **
Pad standard
G02S Resin,
G03S Resin
Pad standard
J02A Resin **
J03A Resin **
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended brake lever
BL-M6100
BL-MT501
BL-T6000
Recommended disc brake rotor
SM-RT54****
SM-RT56****
SM-RT64
SM-RT66
Drivetrain
Crankset
FSA V-Drive, Modular 1x, 30T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
Shifter
Shimano SL-7000R 1x11-Speed
Bottom bracket
External Sealed Cartridge Bearings
Front derailleur
- - -Shift Lever
Rear derailleur
Shimano SLX RD-M7000-11-GS
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
Series 3 6061 Aluminum Frame, 29” Wheels, 120mm Travel MultiTrac Suspension Platform, Seatstay Mounted Post Mount Disc Brakes, 148x12mm Boost Thru-Axle
Front suspension
RockShox Revelation RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-RVL-RC-A2
Name
Revelation RC
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe RT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320
Model
RS-DLX-RT-B1
Name
Deluxe RT
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Wheels
Rims
Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
Tires
WTB Trail Boss, 29x2.4", TCS Light/Fast, Tubeless Compatible
Spokes
14g Black Stainless Steel
Rear hub
Formula, 148x12mm, Quad Sealed Bearings, Centerlock Disc, 32H
Front hub
Formula, 110x15mm, Centerlock Disc, 32H

Geometry

Size SM MD LG XL
a
Seat tube length
385,0
420,0
450,0
480,0
b
Seat tube angle
74,8º
74,8º
74,8º
74,8º
c
Top tube length
587,0
614,0
638,0
672,0
d
Head tube length
100,0
105,0
110,0
115,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
111,0
112,0
111,0
112,0
h
Wheelbase
1136,0
1158,0
1180,0
1211,0
i
Chainstay length
437,0
437,0
437,0
437,0
j
Bottom bracket drop
38,5
38,5
38,5
38,5
k
Stack height
611,0
616,0
621,0
625,0
l
Reach
422,0
443,0
462,0
492,0
m
Standover height
686,0
715,0
727,0
752,0
x
Bottom bracket height
337,5
337,5
337,5
337,5
y
Front center
702,0
724,0
746,0
777,0
