BikeWise

Marin Team Marin 2020

MTB Cross Country
Groupset
SRAM NX
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

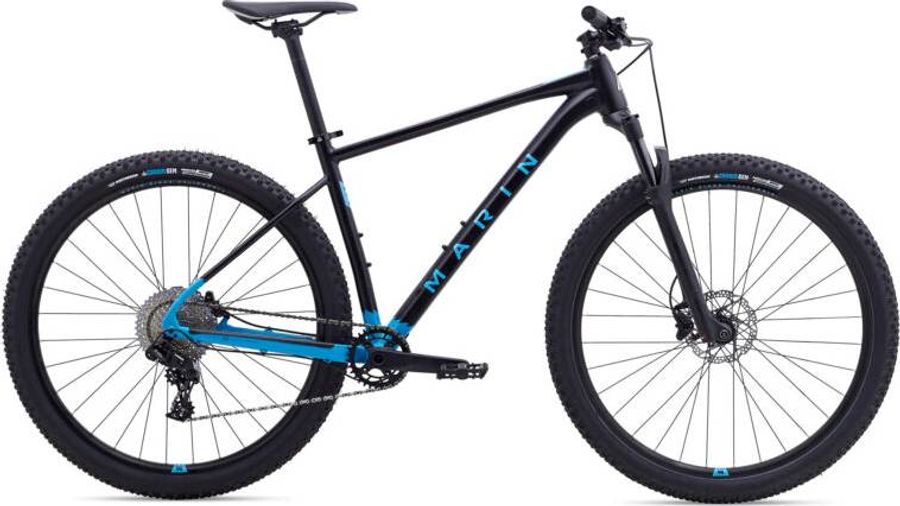

Marin Team Marin 2020

About the Marin Team Marin 2020

The Marin Team Marin 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and e-thru axle.

Features

The Marin Team Marin 2020 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Acessories
Grip
Marin MTN, Closed End
Pedals
Nylon Platform
Components
Steam
Marin 3D Forged Alloy, 60mm
Saddle
Marin Speed Concept
Headset
FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seatpost
Marin Alloy, 30.9mm
Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4º Up, 9º Back
Brake lever
Shimano MT400 Hydraulic
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow-Wide 32T Chainring, BCD 76mm
Shifter
SRAM NX 1x11-Speed
Bottom bracket
External Sealed Cartridge Bearings
Cassette
Sunrace MX8 11-42T 11-speed
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Chain
KMC X11
Frameset
Frame
Series 3 6061 Aluminum, Double Butted Frame, Internal Shifter and Dropper Post Routing, 148x12mm Boost Thru-Axle
Front suspension
RockShox Judy Silver TK Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYS-TK-A2
Name
Judy Silver TK
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Tires
Vee Tire Co, Crown Gem 29x2.3", Dual Control Compound, Wire Bead
Spokes
14g Black Stainless Steel
Rear hub
Forged Alloy, 148x12mm, Quad Sealed Cartridge Bearings, Alloy Axle, Centerlock Disc, 32H
Front hub
Forged Alloy, 110x15mm, Sealed Cartridge Bearings, Centerlock Disc, 32H

Geometry

Size SM MD LG XL
a
Seat tube length
381,0
431,0
482,0
520,0
b
Seat tube angle
75,0º
75,0º
75,0º
75,0º
c
Top tube length
585,0
602,0
622,0
639,0
d
Head tube length
105,0
110,0
115,0
120,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
88,0
89,0
88,0
88,0
h
Wheelbase
1116,0
1133,0
1154,0
1171,0
i
Chainstay length
433,0
433,0
433,0
433,0
j
Bottom bracket drop
66,0
66,0
66,0
66,0
k
Stack height
612,0
617,0
621,0
626,0
l
Reach
420,0
436,0
454,0
470,0
m
Standover height
685,0
730,0
773,0
804,0
x
Bottom bracket height
306,0
306,0
306,0
306,0
y
Front center
691,0
708,0
729,0
746,0
