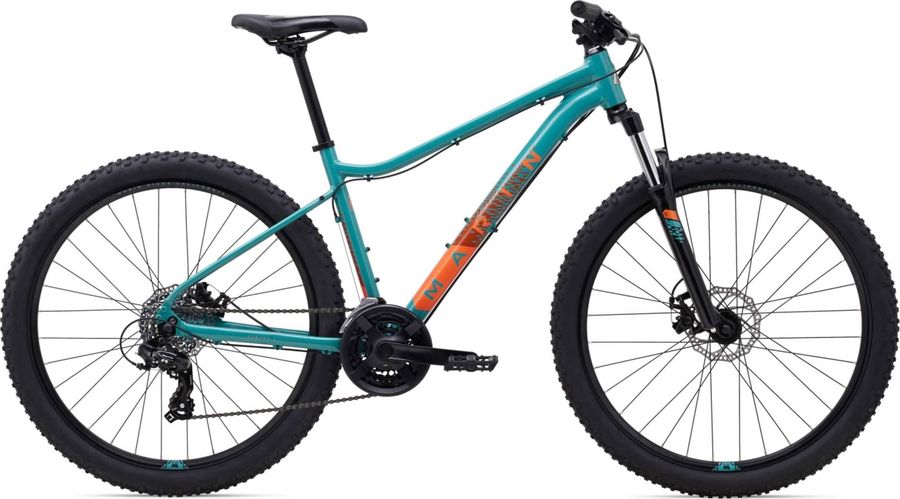

Marin Wildcat Trail 1 2021
The Marin Wildcat Trail 1 2021 is a women’s bike. In general, women’s bikes are designed to fit better on women's body proportions.
Women's Bike
Groupset
Shimano Tourney
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm
About the Marin Wildcat Trail 1 2021
The Marin Wildcat Trail 1 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Tourney drivetrain of 21 gears (3x7).
Specifications
|
Grip
|
Marin Dual Density
|
|---|---|
|
Pedals
|
Nylon Platform
|
|
Steam
|
Marin Alloy, 31.8mm Clamp, 45mm
|
|---|---|
|
Saddle
|
Marin MTB
|
|
Headset
|
FSA No.10-P
|
|
Seatpost
|
Marin Alloy, 30.9
|
|
Handlebar
|
Marin 31.8 Riser, 12mm Rise, 780mm Width
|
|
Brake lever
|
Shimano w/ Integrated Shifters
|
|
Crankset
|
Alloy Crank, Steel Chainrings, 42/34/24T
|
|---|---|
|
Shifter
|
Shimano Tourney 3x7-Speed
|
|
Bottom bracket
|
Sealed Cartridge Bearings, Square Taper
|
|
Front derailleur
|
Shimano FD-TX500
|
|
Rear derailleur
|
Shimano Tourney RD-TY300
SGS
7/6s
|
|
|
|
|
Cassette
|
Sunrace M40 11-34T 7-speed
|
|
Chain
|
KMC Z50
|
|
Frame
|
Series 1 6061 Aluminum, Women's Specific Frame, 27.5” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, Chainstay Mounted Disc Brakes
|
|---|---|
|
Front suspension
|
SR Suntour XCE
|
|
Rims
|
Marin, Double Wall Alloy
|
|---|---|
|
Tires
|
MTB, 27.5"
|
Geometry
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
|
a
Seat tube length
|
330,0
|
381,0
|
431,0
|
481,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
564,5
|
581,0
|
597,2
|
613,5
|
|
d
Head tube length
|
100,0
|
105,0
|
110,0
|
115,0
|
|
e
Head tube angle
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
93,0
|
93,0
|
93,0
|
93,0
|
|
h
Wheelbase
|
1082,5
|
1099,3
|
1116,2
|
1133,0
|
|
i
Chainstay length
|
428,0
|
428,0
|
428,0
|
428,0
|
|
j
Bottom bracket drop
|
48,0
|
48,0
|
48,0
|
48,0
|
|
k
Stack height
|
578,8
|
583,5
|
588,0
|
593,0
|
|
l
Reach
|
398,0
|
413,0
|
428,0
|
443,0
|
|
m
Standover height
|
611,02
|
644,3
|
684,87
|
721,7
|
|
x
Bottom bracket height
|
307,0
|
307,0
|
307,0
|
307,0
|
|
y
Front center
|
659,0
|
676,0
|
693,0
|
709,0
|
