BikeWise

Marin Wolf Ridge Pro 2018

MTB Enduro
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
160mm

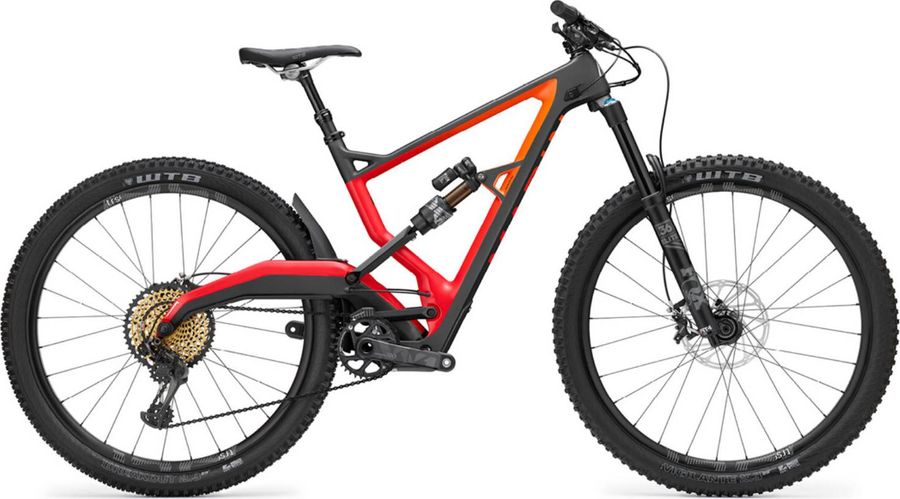

Marin Wolf Ridge Pro 2018

About the Marin Wolf Ridge Pro 2018

The Marin Wolf Ridge Pro 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Marin Wolf Ridge Pro 2018 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Marin Locking
Pedals
- - -
Components
Steam
Deity Copperhead Stem, 35mm
Saddle
WTB Volt Race
Headset
FSA No 42/ACB, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seatpost
KS LEV SIO Dropper Post, Custom Offset Head, Southpaw Lever, Size S 120mm Travel, All Other Sizes: 150mm Travel
Handlebar
Deity DC31 Mohawk Carbon Bar, 787mm Width, 15mm Rise, Custom Color
Brake lever
SRAM Guide Ultimate Hydraulic
Brakes
SRAM Guide Ultimate Hydraulic 360 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Arctic Grey Anodized, Black Anodized
Model
DB-GDE-ULT-A1
Name
Guide Ultimate
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
360
Drivetrain
Crankset
Truvativ Descendant Carbon, Direct Mount 12-Speed 34T, Boost Spacing
Shifter
SRAM XX1 Eagle, 1x12-Speed
Chain guide
e*thirteen TRS+ Chain Guide, Upper Guide and Lower Bash Guard
Bottom bracket
SRAM GXP BB92
Front derailleur
- - -
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
Full Unidirectional Carbon Fiber Frame, Naild R3ACT – 2 Play Suspension Technology, 160mm Travel, 148mm Boost Rear Spacing, Naild 12-3-9 Locking Quick Release Thru-Axle
Rear suspension
Fox Float X2 Factory
Front suspension
Fox 36 Float Performance Elite
Wheels
Rims
e*thirteen TRS Race, Carbon Fiber Rim, 28H, 31mm Inner, Hookless, Tubeless Ready
Tires
F: WTB Vigilante 29x2.3" R: WTB Breakout, 29x2.3", TCS Light/Fast, Tubeless Compatible
Spokes
The Hive Triple-Butted, Black
Rear hub
e*thirteen TRS Race, Carbon Shell, Machined Aluminum Flanges, 660 Freehub
Front hub
e*thirteen TRS Race, Carbon Shell, Machined Aluminum Flanges

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
420,0
465,0
525,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
582,0
602,0
627,0
644,6
d
Head tube length
90,0
90,0
100,0
125,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
113,0
113,0
113,0
113,0
h
Wheelbase
1161,7
1181,7
1213,0
1236,2
i
Chainstay length
442,0
442,0
442,0
442,0
j
Bottom bracket drop
37,0
37,0
37,0
37,0
k
Stack height
633,5
633,5
642,8
665,6
l
Reach
422,0
442,0
469,2
482,8
m
Standover height
708,0
718,0
761,0
807,0
x
Bottom bracket height
336,0
336,0
336,0
336,0
y
Front center
722,0
742,0
773,0
797,0
