Marin Wolf Ridge Pro 2019

MTB Enduro
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
160mm

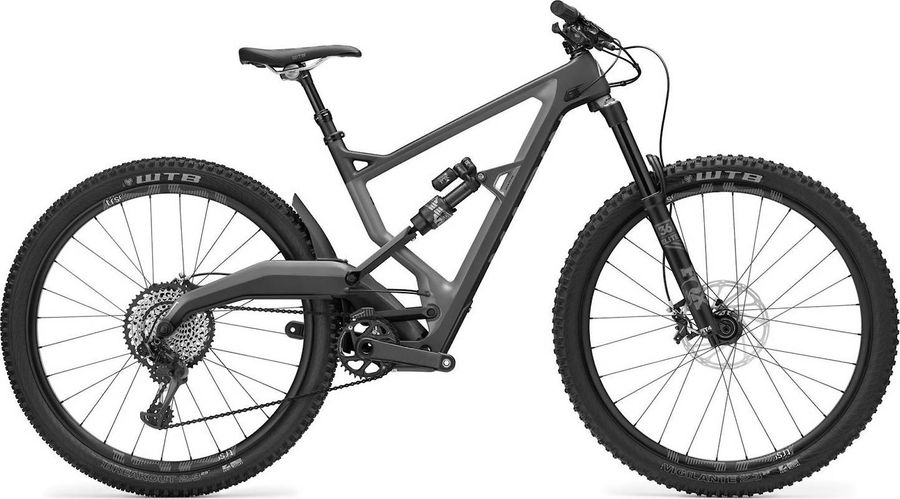

Marin Wolf Ridge Pro 2019

About the Marin Wolf Ridge Pro 2019

The Marin Wolf Ridge Pro 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Marin Wolf Ridge Pro 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
eixo-e-thru
E-THRU AXLE More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Marin Locking
Components
Steam
Deity Copperhead, 35mm Length
Saddle
WTB Volt Race, Ti Rails
Headset
FSA Orbit, No. 42/47/ACB/S-4, Sealed Cartridge Bearings
Seatpost
FOX Transfer Performance Elite, Anodized Black, with 1x Lever, Size S: 125mm Travel, All Other Sizes: 150mm Travel
Handlebar
Deity DC31 Mohawk Carbon, 787mm Width, 15mm Rise
Brake lever
Shimano XTR BLM9120
Brakes
Shimano XTR BR-M9120 385 (BL-M9120) g Hydraulic disc brake 4 piston
Average weight (g)
385 (BL-M9120)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad standard
N03A Resin pad (w/ radiator fin)
Pad standard
N04C Metal pad (w/ radiator fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Shimano XTR, FC-M9120-1, Size S: 170mm Length, All Other Sizes: 175mm Length
Shifter
Shimano XTR, SL-M9100-IR, 12-Speed, I-Spec EV
Chain guide
e*thirteen TRS+
Bottom bracket
Shimano XTR PF92
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Carbon Fiber
Rear suspension
Fox Float X2 Factory
Front suspension
Fox 36 Float Factory
Wheels
Rims
e*thirteen TRS Race, Carbon Fiber, 28 Hole, 31mm Inner, Hookless, Tubeless Ready
Tires
Front: e*thirteen TRS Race, 29"x2.35", Race Compound, Aramid Reinforced, 72 TPI, Rear: e*thirteen TRS Plus, 29"x2.35", Plus Compound, 72 TPI
Spokes
The Hive Triple-Butted, Black, J-Bend
Rear hub
Front: Shimano XTR, Alloy Body, Cartridge Bearings, 110mm x 15mm E-Thru Axle, Rear: Shimano XTR Scylence, Alloy Body, Cartridge Bearings, 148mm x 12mm E-Thru Axle, XTR Freehub Body
Front hub
Front: Shimano XTR, Alloy Body, Cartridge Bearings, 110mm x 15mm E-Thru Axle, Rear: Shimano XTR Scylence, Alloy Body, Cartridge Bearings, 148mm x 12mm E-Thru Axle, XTR Freehub Body

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
420,0
465,0
525,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
582,0
602,0
627,0
644,6
d
Head tube length
90,0
90,0
100,0
125,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1161,7
1181,7
1213,0
1236,2
i
Chainstay length
442,0
442,0
442,0
442,0
j
Bottom bracket drop
38,0
38,0
38,0
38,0
k
Stack height
633,5
633,5
642,8
665,6
l
Reach
422,0
442,0
469,2
482,8
m
Standover height
708,0
718,0
761,0
807,0
x
Bottom bracket height
336,0
336,0
336,0
336,0
y
Front center
-
-
-
-
