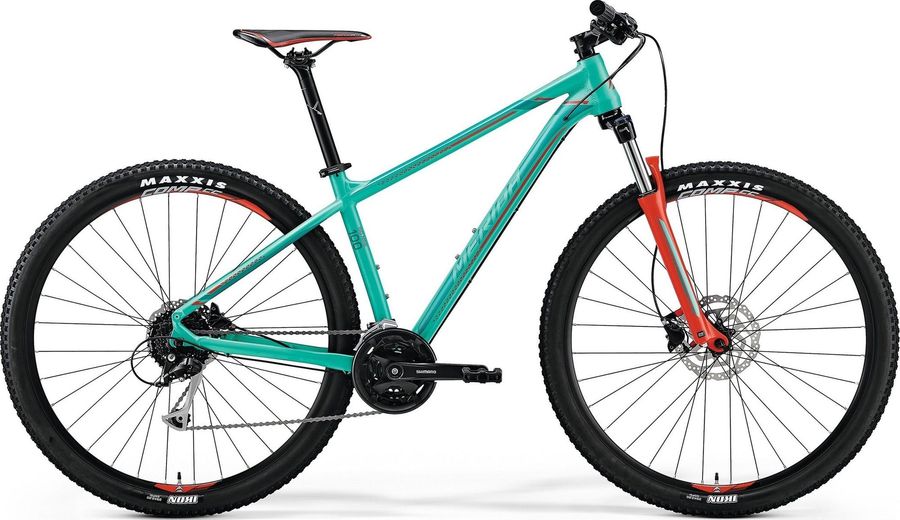

Merida BIG.NINE 100 2018

MTB Cross Country

Groupset

Shimano Alivio

Frame material

Alloy

Wheel size

29"

Suspension type

Hardtail

Weight

13,85 kg

Front travel

100mm

About the Merida BIG.NINE 100 2018

The Merida BIG.NINE 100 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Alivio drivetrain of 27 gears (3x9). Its features include hydraulic disc brakes. The bike weighs approximately 13,85 kg.

Features

The Merida BIG.NINE 100 2018 has 1 features listed below.

Hydraulic disc brakes More info

Specifications

Components
Saddle	MERIDA Sport
Headset	MERIDA M2345
Seatpost	MERIDA Comp in line 30.9mm
Handlebar	MERIDA Expert CC 720mm wide 10mm rise
Brake lever	Shimano M315
Brakes	Shimano Altus BR-M315

Drivetrain
Crankset	Shimano MT100 40-30-22 teeth
Shifter	Shimano Altus 27 speed rapid fire
Front derailleur	Shimano M3000
Cassette	Shimano Altus CS-HG200-9 HG
Combination names 11-32T 11-34T 11-36T Compatible chain HG 9-speed Lock ring finish Phosphate coated Lock ring material Steel Model CS-HG200-9 Steel gear finish Phosphate coated Steel gear pieces 9 Type HG
Chain	KMC M99
Rear derailleur	Shimano Alivio RD-M3100 SGS 9s
B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Steel Bracket body finish Painted Bracket body material Aluminum Compatible chain CN-HG53 9-speed Lower pulley max 36T Lower pulley min 32T Model RD-M3100-SGS P axle finish Zinc plated P axle material Steel pulley.screws_material Steel pulley.sunken_type_pulley_screw Pulley teeth 11T Pulley cage SGS Speeds 9 Upper pulley max 12T Upper pulley min 11T Total capacity 45T

Frameset
Frame	BIG.NINE TFS
Front suspension	SR Suntour XCM

Wheels
Rims	MERIDA BIG.NINE Comp CC
Tires	Maxxis Ikon 29er 2.2" folding
Spokes	Black stainless
Rear hub	Shimano Centerlock, quick release
Front hub	Shimano Centerlock, quick release

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

Alivio 3 × 9

Crank: 40-22T

Cassette: 11-34T

Speeds: 27s

Gearing

Average

0,65

Average

3,64

Compared to similar bikes, the Merida BIG.NINE 100 2018 has an excellent uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	SM	MD	LG	XL	XXL
a Seat tube length	370,0	430,0	470,0	510,0	560,0
b Seat tube angle	73,0º	73,0º	73,0º	73,0º	73,0º
c Top tube length	574,0	594,0	614,0	634,0	654,0
d Head tube length	100,0	115,0	130,0	145,0	160,0
e Head tube angle	70,0º	70,0º	70,0º	70,0º	70,0º
f Rake	46,0	46,0	45,0	46,0	46,0
g Trail	87,0	87,0	88,0	87,0	87,0
h Wheelbase	1073,0	1094,0	1114,0	1135,0	1156,0
i Chainstay length	444,0	444,0	444,0	444,0	444,0
j Bottom bracket drop	60,0	60,0	60,0	60,0	60,0
k Stack height	618,0	632,0	646,0	660,0	674,0
l Reach	386,0	402,0	418,0	433,0	449,0
m Standover height	683,0	731,0	767,0	804,0	847,0
x Bottom bracket height	314,0	314,0	314,0	314,0	314,0
y Front center	636,0	657,0	677,0	698,0	719,0
