Merida BIG.NINE 100 2020

MTB Cross Country
Groupset
Shimano Alivio
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
13,57 kg
Front travel
100mm

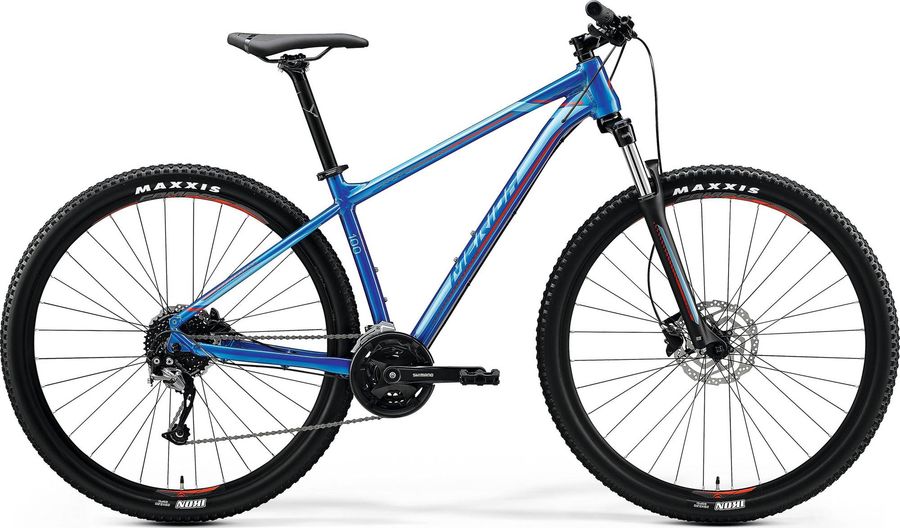

Merida BIG.NINE 100 2020

About the Merida BIG.NINE 100 2020

The Merida BIG.NINE 100 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Alivio drivetrain of 27 gears (3x9). Its features include hydraulic disc brakes. The bike weighs approximately 13,57 kg.

Features

The Merida BIG.NINE 100 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Saddle
MERIDA COMP CC
Headset
MERIDA M2345
Seatpost
MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback
Handlebar
MERIDA EXPERT CC, material: aluminium, 720mm width, 10mm rise
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano MT101, 40-30-22 teeth, 170 mm-S, 175 mm-M up
Shifter
Shimano Altus
Bottom bracket
Shimano UN100 BSA
Front derailleur
Shimano M3000
Cassette
Shimano Altus CS-HG200-9 HG
Combination names
11-32T
11-34T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Phosphate coated
Lock ring material
Steel
Model
CS-HG200-9
Steel gear finish
Phosphate coated
Steel gear pieces
9
Type
HG
Chain
KMC M99
Rear derailleur
Shimano Alivio RD-M3100 SGS 9s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
CN-HG53 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M3100-SGS
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Frameset
Frame
BIG.NINE TFS, material: aluminum, 29 wheelsize, 135x9mm axle standard, BSA bottom bracket standard
Front suspension
SR Suntour XCM HLO
Wheels
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Tires
Maxxis Ikon, 29x2.2", fold
Spokes
Black stainless
Rear hub
Shimano TX505, 135x9mm width rear hub, 32 spoke holes, Centerlock
Front hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock

Geometry

Size SM MD LG XL XXL
a
Seat tube length
370,0
430,0
470,0
510,0
560,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
574,0
594,0
614,0
634,0
654,0
d
Head tube length
100,0
115,0
130,0
145,0
160,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
46,0
46,0
45,0
46,0
46,0
g
Trail
87,0
87,0
88,0
87,0
87,0
h
Wheelbase
1073,0
1094,0
1114,0
1135,0
1156,0
i
Chainstay length
444,0
444,0
444,0
444,0
444,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
60,0
k
Stack height
618,0
632,0
646,0
660,0
674,0
l
Reach
386,0
402,0
418,0
433,0
449,0
m
Standover height
683,0
731,0
767,0
804,0
847,0
x
Bottom bracket height
314,0
314,0
314,0
314,0
314,0
y
Front center
636,0
657,0
677,0
698,0
719,0
