Merida BIG.NINE 15-D 2020

MTB Cross Country
Groupset
Shimano Altus
Wheel size
29"
Suspension type
Hardtail
Weight
15,2 kg
Front travel
100mm

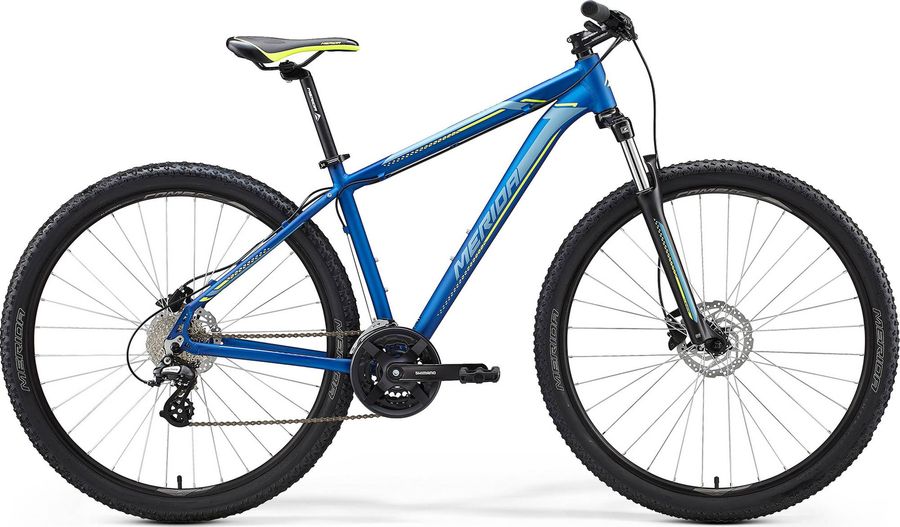

Merida BIG.NINE 15-D 2020

About the Merida BIG.NINE 15-D 2020

The Merida BIG.NINE 15-D 2020 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano Altus drivetrain of 24 gears (3x8). Its features include hydraulic disc brakes. The bike weighs approximately 15,2 kg.

Features

The Merida BIG.NINE 15-D 2020 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Saddle
MERIDA Sport Comfort
Headset
FSA NO.10
Seatpost
MERIDA CC, 30.9mm diameter, 15mm setback
Handlebar
MERIDA CC, 690mm width, 15mm rise
Discs
Shimano RT10
Brake lever
Shimano ST-EF505 EZ Fire
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Chain
KMC M700
Crankset
Shimano TY301, 42-34-24 teeth
Shifter
Shimano ST-EF505
Bottom bracket
FSA TH-7420ST-W, Cartridge bearing
Front derailleur
Shimano FD-TY700
Rear derailleur
Shimano Altus RD-M310 Smart 8/7s
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 8/7-speed
Lower pulley max
34T
Lower pulley min
28T
Model
RD-M310-Smart
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
Pulley teeth
13/15T
Pulley cage
Smart
Speeds
8/7
Upper pulley max
14T
Upper pulley min
11T
Total capacity
43T
Cassette
Sunrace M66 11-34T 8-speed
Frameset
Frame
BIG.NINE SPEED
Front suspension
SR Suntour XCM
Wheels
Rims
MERIDA CC, 17mm inner width
Tires
MERIDA K1080

Geometry

Size SM MD LG XL
a
Seat tube length
382,0
448,0
486,0
532,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,0º
c
Top tube length
557,0
578,0
598,0
618,0
d
Head tube length
100,0
110,0
120,0
130,0
e
Head tube angle
70,0º
70,0º
70,5º
70,5º
f
Rake
47,0
51,0
53,0
57,0
g
Trail
86,0
82,0
76,0
72,0
h
Wheelbase
1070,0
1091,0
1105,0
1125,0
i
Chainstay length
449,0
449,0
449,0
449,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
k
Stack height
613,0
622,0
634,0
643,0
l
Reach
372,0
386,0
399,0
412,0
m
Standover height
697,0
754,0
788,0
828,0
x
Bottom bracket height
314,0
314,0
314,0
314,0
y
Front center
628,0
649,0
663,0
683,0
