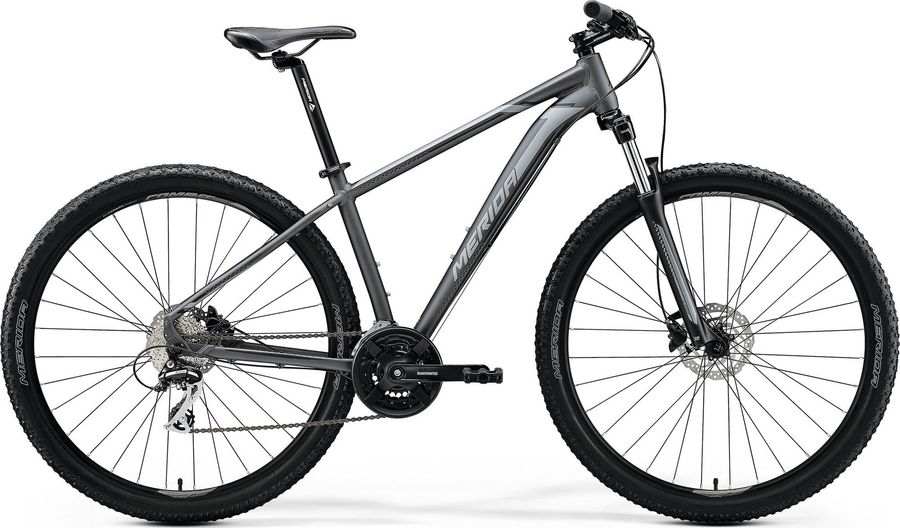

Merida BIG.NINE 20-D 2020
Groupset
Shimano Acera
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
15,6 kg
Front travel
100mm
About the Merida BIG.NINE 20-D 2020
The Merida BIG.NINE 20-D 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Acera drivetrain of 24 gears (3x8). The bike weighs approximately 15,6 kg.
Specifications
|
Saddle
|
MERIDA Sport comfort
|
|---|---|
|
Headset
|
FSA NO.10
|
|
Seatpost
|
MERIDA CC, material: aluminium, 30.9mm diameter, 15mm setback
|
|
Handlebar
|
MERIDA CC, material: aluminium, 690mm width, 15mm rise
|
|
Discs
|
Shimano RT10
|
|
Brake lever
|
Shimano ST-EF505
|
|
Brakes
|
Shimano EF505 Hidráulico
|
|
Chain
|
KMC M700
|
|---|---|
|
Crankset
|
Shimano TY301, 42-34-24 teeth, 170 mm-S, 175 mm-M/XXL
|
|
Shifter
|
Shimano ST-EF505
|
|
Bottom bracket
|
FSA TH-7420ST-W, Cartridge Bearing
|
|
Front derailleur
|
Shimano FD-TY700
|
|
Cassette
|
Sunrace M66 11-34T 8-speed
|
|
Rear derailleur
|
Shimano Acera RD-M360
SGS
8/7s
|
|
|
|
|
Frame
|
BIG.NINE SPEED N, material: aluminium, 29" wheelsize, 135x9mm axle standard, BSA bottom bracket standard
|
|---|---|
|
Front suspension
|
SR Suntour XCM HLO
|
|
Rims
|
MERIDA CC, 17mm inner width, material: aluminium
|
|---|---|
|
Tires
|
MERIDA K1080
|
Geometry
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
370,0
|
430,0
|
470,0
|
510,0
|
560,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
574,0
|
594,0
|
614,0
|
634,0
|
654,0
|
|
d
Head tube length
|
100,0
|
115,0
|
130,0
|
145,0
|
160,0
|
|
e
Head tube angle
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
46,0
|
46,0
|
45,0
|
46,0
|
46,0
|
|
g
Trail
|
87,0
|
87,0
|
88,0
|
87,0
|
87,0
|
|
h
Wheelbase
|
1078,0
|
1099,0
|
1119,0
|
1140,0
|
1161,0
|
|
i
Chainstay length
|
449,0
|
449,0
|
449,0
|
449,0
|
449,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
618,0
|
632,0
|
646,0
|
660,0
|
674,0
|
|
l
Reach
|
386,0
|
402,0
|
418,0
|
433,0
|
449,0
|
|
m
Standover height
|
691,0
|
743,0
|
779,0
|
813,0
|
855,0
|
|
x
Bottom bracket height
|
314,0
|
314,0
|
314,0
|
314,0
|
314,0
|
|
y
Front center
|
636,0
|
657,0
|
677,0
|
698,0
|
719,0
|
