Merida BIG.NINE 40 2020

MTB Cross Country
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
15,2 kg
Front travel
100mm

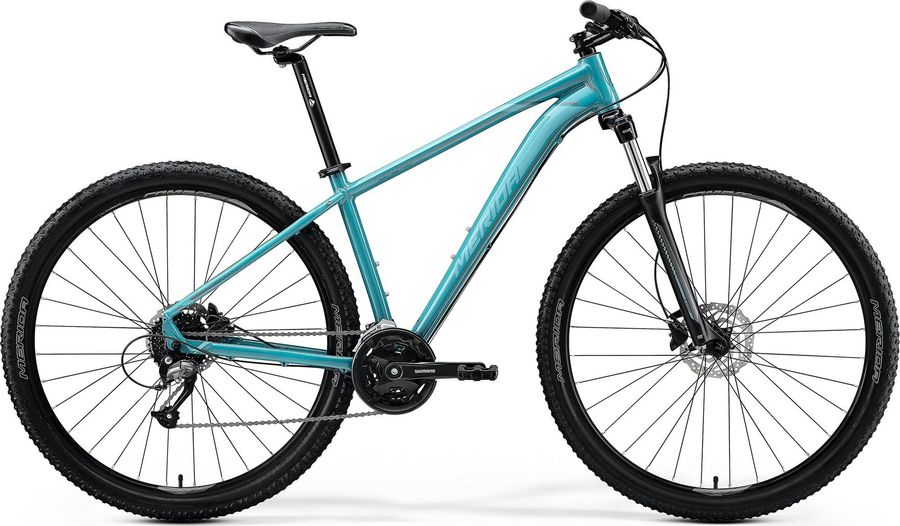

Merida BIG.NINE 40 2020

About the Merida BIG.NINE 40 2020

The Merida BIG.NINE 40 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 27 gears (3x9). The bike weighs approximately 15,2 kg.

Specifications

Components
Saddle
MERIDA Sport comfort
Headset
FSA NO.10
Seatpost
MERIDA CC, material: aluminium, 30.9mm diameter, 15mm setback
Handlebar
MERIDA CC, material: aluminium, 690mm width, 15mm rise
Discs
Shimano RT10
Brake lever
Shimano ST-EF505
Brakes
Shimano EF505 Hidráulico
Drivetrain
Crankset
Shimano MT100, 40-30-22 teeth, 170 mm-S, 175 mm-M/XXL
Shifter
Shimano ST-EF505
Bottom bracket
Shimano BB-UN100
Front derailleur
Shimano FD-M2000
Cassette
Shimano Altus CS-HG200-9 HG
Combination names
11-32T
11-34T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Phosphate coated
Lock ring material
Steel
Model
CS-HG200-9
Steel gear finish
Phosphate coated
Steel gear pieces
9
Type
HG
Chain
KMC M99
Rear derailleur
Shimano RD-M370-SGS SGS 9s
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 9-speed
Lower pulley max
34T
Lower pulley min
28T
Model
RD-M370-SGS
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
pulley.sunken_type_pulley_screw
true
- (Tension pulley)
Pulley teeth
11/11T
Pulley cage
SGS
Speeds
9
Upper pulley max
11T
Upper pulley min
11T
Total capacity
45T
Frameset
Frame
BIG.NINE SPEED N, material: aluminium, 29" wheelsize, 135x9mm axle standard, BSA bottom bracket standard
Front suspension
SR Suntour XCM HLO
Wheels
Rims
MERIDA CC, 17mm inner width, material: aluminium
Tires
MERIDA K1080

Geometry

Size MD LG XL
a
Seat tube length
430,0
470,0
510,0
b
Seat tube angle
73,0º
73,0º
73,0º
c
Top tube length
586,0
606,0
626,0
d
Head tube length
115,0
130,0
145,0
e
Head tube angle
70,0º
70,0º
70,0º
f
Rake
46,0
45,0
46,0
g
Trail
87,0
88,0
87,0
h
Wheelbase
1091,0
1111,0
1132,0
i
Chainstay length
441,0
441,0
441,0
j
Bottom bracket drop
60,0
60,0
60,0
k
Stack height
624,0
638,0
652,0
l
Reach
394,0
410,0
425,0
m
Standover height
735,0
771,0
805,0
x
Bottom bracket height
314,0
314,0
314,0
y
Front center
657,0
677,0
698,0
