Merida BIG.NINE 40-D 2017

MTB Cross Country
Groupset
Shimano Altus
Wheel size
29"
Suspension type
Hardtail
Weight
15,6 kg

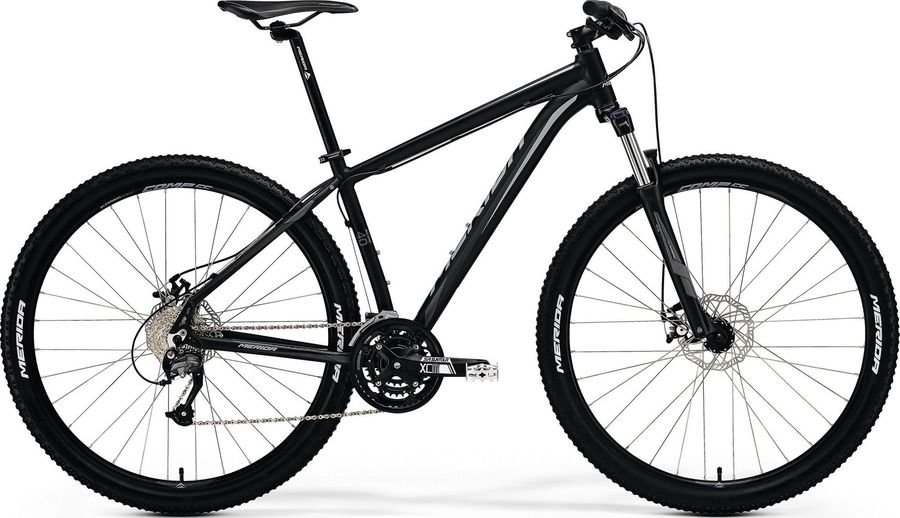

Merida BIG.NINE 40-D 2017

About the Merida BIG.NINE 40-D 2017

The Merida BIG.NINE 40-D 2017 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano Altus drivetrain of 27 gears (3x9). Its features include hydraulic disc brakes. The bike weighs approximately 15,6 kg.

Features

The Merida BIG.NINE 40-D 2017 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Saddle
MERIDA Sport
Headset
EGG steel-B
Seatpost
MERIDA speed 27.2
Handlebar
MERIDA comp OS 690 R15
Brake lever
Tektro M285
Brakes
Tektro MA
Drivetrain
Chain
Chain 9S
Crankset
SR XCM 44-32-22 CG
Shifter
Shimano Altus rapidfire
Front derailleur
Shimano M370
Cassette
Sunrace 9-speed
Rear derailleur
Shimano Altus RD-M2000 SGS 9s
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M2000
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Frameset
Frame
BIG.NINE SPEED
Front suspension
SR Suntour XCM HLO
Wheels
Rims
MERIDA BIG.NINE D
Tires
MERIDA 29 2.2
Spokes
stainless silver
Rear hub
Alloy Disc / Alloy Disc cassette
Front hub
Alloy Disc / Alloy Disc cassette

Geometry

Size 15" 17" 19" 21" 23"
a
Seat tube length
382,0
448,0
486,0
532,0
583,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,0º
73,0º
c
Top tube length
557,0
578,0
598,0
618,0
639,0
d
Head tube length
100,0
110,0
120,0
130,0
140,0
e
Head tube angle
70,0º
70,0º
70,5º
70,5º
70,5º
f
Rake
45,0
46,0
46,0
45,0
46,0
g
Trail
88,0
87,0
84,0
85,0
84,0
h
Wheelbase
1070,0
1091,0
1105,0
1125,0
1146,0
i
Chainstay length
449,0
449,0
449,0
449,0
449,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
60,0
k
Stack height
613,0
622,0
634,0
643,0
653,0
l
Reach
374,0
391,0
407,0
424,0
441,0
m
Standover height
697,0
754,0
788,0
828,0
868,0
x
Bottom bracket height
314,0
314,0
314,0
314,0
314,0
y
Front center
628,0
649,0
663,0
683,0
704,0
