Merida BIG.NINE 4000 2020

MTB Cross Country
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
11,15 kg
Front travel
100mm

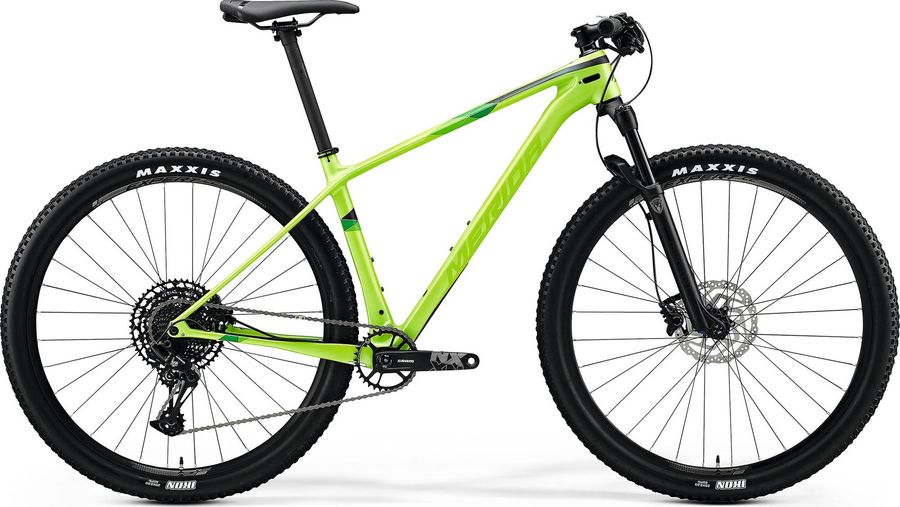

Merida BIG.NINE 4000 2020

About the Merida BIG.NINE 4000 2020

The Merida BIG.NINE 4000 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 11,15 kg.

Features

The Merida BIG.NINE 4000 2020 has 6 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Saddle
MERIDA COMP CC
Headset
FSA NO.55E
Seatpost
MERIDA EXPERT CC, material: carbon, 30.9mm diameter, 0mm setback
Handlebar
MERIDA EXPERT CC, material: aluminium, 720mm width, flat
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM NX Eagle, 32 teeth, 170 mm-S, 175 mm-M up
Shifter
SRAM NX Eagle
Bottom bracket
SRAM BB DUB PF MTB 92
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Frameset
Frame
BIG.NINE CF3, material: carbon, 29 wheelsize, 148x12mm axle standard, BB92 bottom bracket standard
Front suspension
Manitou Markhor
Wheels
Rims
MERIDA EXPERT CC, 22.8mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Tires
Maxxis Ikon, 29x2.2", fold
Spokes
Double Butted Black stainless
Rear hub
Shimano MT400-B, 148x12mm width rear hub, 32 spoke holes, Centerlock
Front hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock

Geometry

Size SM MD LG XL XXL
a
Seat tube length
380,0
444,0
483,0
532,0
584,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
582,0
602,0
622,0
642,0
662,0
d
Head tube length
95,0
100,0
110,0
125,0
145,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
46,0
46,0
46,0
46,0
46,0
g
Trail
87,0
87,0
87,0
87,0
87,0
h
Wheelbase
1077,0
1098,0
1118,0
1139,0
1160,0
i
Chainstay length
430,0
430,0
430,0
430,0
430,0
j
Bottom bracket drop
65,0
65,0
65,0
65,0
65,0
k
Stack height
614,0
619,0
628,0
642,0
661,0
l
Reach
399,0
418,0
435,0
451,0
465,0
m
Standover height
678,0
741,0
775,0
816,0
839,0
x
Bottom bracket height
309,0
309,0
309,0
309,0
309,0
y
Front center
655,0
676,0
696,0
717,0
738,0
