Merida BIG.NINE 500 2020

MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
12,19 kg
Front travel
100mm

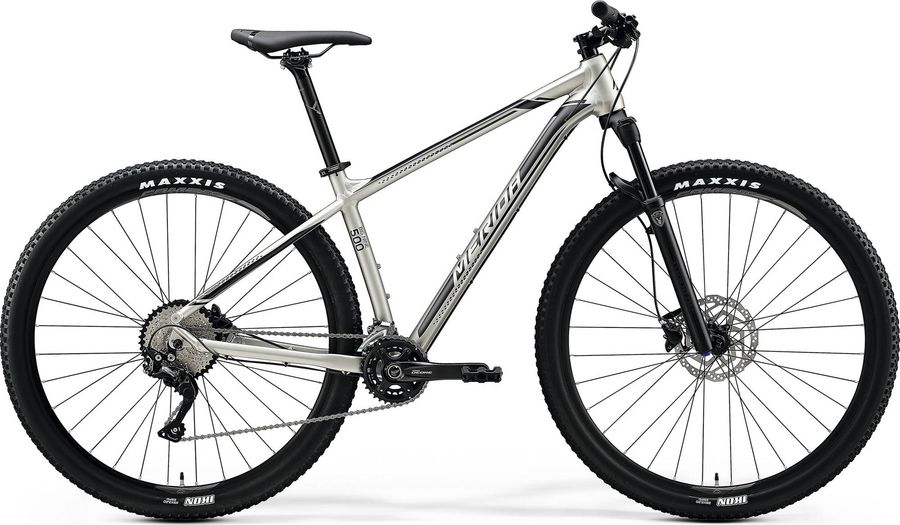

Merida BIG.NINE 500 2020

About the Merida BIG.NINE 500 2020

The Merida BIG.NINE 500 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 20 gears (2x10). Its features include hydraulic disc brakes e tapered head tube. The bike weighs approximately 12,19 kg.

Features

The Merida BIG.NINE 500 2020 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Components
Saddle
MERIDA COMP CC
Headset
MERIDA M4455
Seatpost
MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback
Handlebar
MERIDA EXPERT CC, material: aluminium, 720mm width, 10mm rise
Discs
Shimano RT10
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Shimano Deore, 34-24 teeth, 170 mm-S, 175 mm-M up
Shifter
Shimano Deore
Bottom bracket
Shimano BB52 BSA
Front derailleur
Shimano Deore
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
BIG.NINE TFS, material: aluminum, 29 wheelsize, 135x9mm axle standard, BSA bottom bracket standard, Smooth welding
Front suspension
Manitou Markhor
Wheels
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Tires
Maxxis Ikon

Geometry

Size MD LG XL
a
Seat tube length
430,0
470,0
510,0
b
Seat tube angle
73,0º
73,0º
73,0º
c
Top tube length
586,0
606,0
626,0
d
Head tube length
115,0
130,0
145,0
e
Head tube angle
70,0º
70,0º
70,0º
f
Rake
46,0
45,0
46,0
g
Trail
87,0
88,0
87,0
h
Wheelbase
1086,0
1106,0
1127,0
i
Chainstay length
436,0
436,0
436,0
j
Bottom bracket drop
60,0
60,0
60,0
k
Stack height
624,0
638,0
652,0
l
Reach
394,0
410,0
425,0
m
Standover height
723,0
759,0
796,0
x
Bottom bracket height
314,0
314,0
314,0
y
Front center
657,0
677,0
698,0
