BikeWise

Merida BIG.NINE 5000 2020

MTB Cross Country
Groupset
Shimano SLX
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
10,73 kg
Front travel
100mm

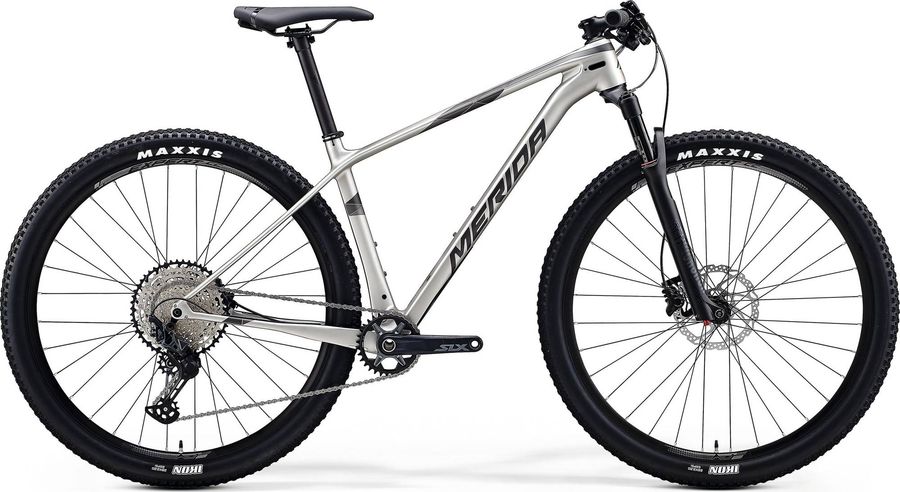

Merida BIG.NINE 5000 2020

About the Merida BIG.NINE 5000 2020

The Merida BIG.NINE 5000 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes. The bike weighs approximately 10,73 kg.

Features

The Merida BIG.NINE 5000 2020 has 6 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Saddle
MERIDA COMP CC
Headset
FSA NO.55E
Seatpost
MERIDA EXPERT CC, material: carbon, 30.9mm diameter, 0mm setback
Handlebar
MERIDA EXPERT CC, material: aluminium, 720mm width, flat
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano SLX, 32 teeth, 170 mm-S, 175 mm-M up
Shifter
Shimano SLX
Bottom bracket
Shimano BB71-41A pressfit
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Rear derailleur
Shimano SLX RD-M7100 313 g SGS 12s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M7100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
BIG.NINE CF3, material: carbon, 29 wheelsize, 148x12mm axle standard, BB92 bottom bracket standard
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Rims
MERIDA EXPERT CC, 22.8mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Tires
Maxxis Ikon, 29x2.2", fold
Spokes
Double Butted Black stainless
Rear hub
Shimano MT510-B, 148x12mm width rear hub, 32 spoke holes, Centerlock
Front hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock

Geometry

Size SM MD LG XL XXL
a
Seat tube length
380,0
444,0
483,0
532,0
584,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
582,0
602,0
622,0
642,0
662,0
d
Head tube length
95,0
100,0
110,0
125,0
145,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
46,0
46,0
46,0
46,0
46,0
g
Trail
87,0
87,0
87,0
87,0
87,0
h
Wheelbase
1077,0
1098,0
1118,0
1139,0
1160,0
i
Chainstay length
430,0
430,0
430,0
430,0
430,0
j
Bottom bracket drop
65,0
65,0
65,0
65,0
65,0
k
Stack height
614,0
619,0
628,0
642,0
661,0
l
Reach
399,0
418,0
435,0
451,0
465,0
m
Standover height
678,0
741,0
775,0
816,0
839,0
x
Bottom bracket height
309,0
309,0
309,0
309,0
309,0
y
Front center
655,0
676,0
696,0
717,0
738,0
