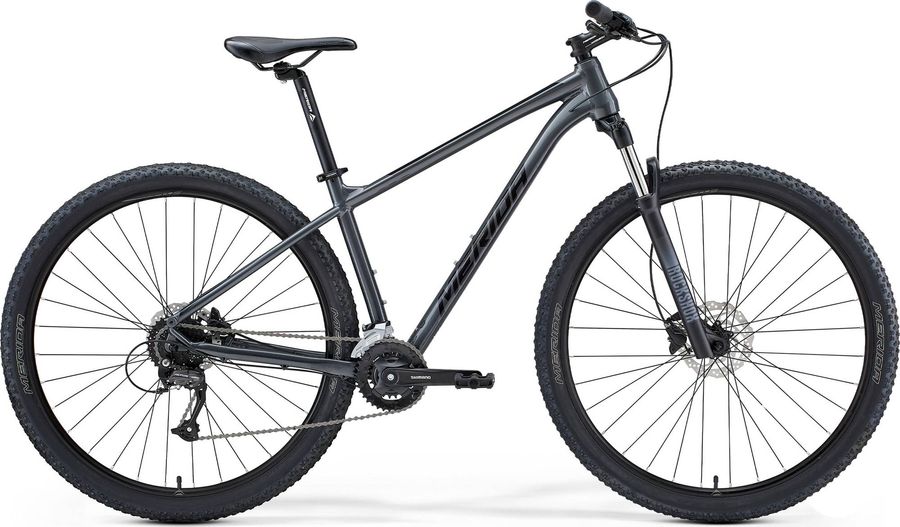

Merida BIG.NINE 60 2021

MTB Cross Country

Groupset

Shimano Altus

Frame material

Alloy

Wheel size

29"

Suspension type

Hardtail

Weight

13,93 kg

Front travel

100mm

About the Merida BIG.NINE 60 2021

The Merida BIG.NINE 60 2021 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 18 gears (2x9). Its features include hydraulic disc brakes. The bike weighs approximately 13,93 kg.

Features

The Merida BIG.NINE 60 2021 has 1 features listed below.

Hydraulic disc brakes More info

Specifications

Components
Steam	MERIDA CC, material: aluminium, 31.8mm diameter, 6° stem angle, 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
Headset	MERIDA M2345
Seatpost	MERIDA CC, material: aluminium, 30.9mm diameter, 15mm setback
Handlebar	MERIDA CC, material: aluminium, 690mm width, 15mm rise
Discs	Shimano RT10, 160 mm
Brakes	Shimano EF505 Hidráulico

Drivetrain
Crankset	Shimano MT101-2, 36-22 teeth, 170 mm-S, 175 mm-M/XXL
Shifter	Shimano ST-EF505-2L / Shimano ST-EF505
Bottom bracket	Shimano BB-UN100, Shimano FD-M2020-TS [2s]
Front derailleur	Shimano FD-M2020-TS [2s]
Cassette	Shimano Altus CS-HG200-9 HG
Combination names 11-32T 11-34T 11-36T Compatible chain HG 9-speed Lock ring finish Phosphate coated Lock ring material Steel Model CS-HG200-9 Steel gear finish Phosphate coated Steel gear pieces 9 Type HG
Chain	KMC M99
Rear derailleur	Shimano RD-M370-SGS SGS 9s
B axle material Stainless steel Bracket body finish Painted Bracket body material Aluminum Compatible chain HG 9-speed Lower pulley max 34T Lower pulley min 28T Model RD-M370-SGS P axle finish Zinc plated P axle material Steel pulley.screws_material Steel pulley.sunken_type_pulley_screw true - (Tension pulley) Pulley teeth 11/11T Pulley cage SGS Speeds 9 Upper pulley max 11T Upper pulley min 11T Total capacity 45T

Frameset
Frame	BIG.NINE TFS III, material: aluminum, 29x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard
Front suspension	RockShox Judy TK

Wheels
Rims	MERIDA CC, 17mm inner width, material: aluminium
Tires	MERIDA K1080, 29x2.2", wire
Rear hub	Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock
Front hub	Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

Altus 2 × 9

Crank: 36-22T

Cassette: 11-32T

Speeds: 18s

Gearing

Average

0,69

Average

3,28

Compared to similar bikes, the Merida BIG.NINE 60 2021 has a good uphill performance and a good downhill performance.

Report incorrect information

Geometry

Size	MD	LG	XL	XXL
a Seat tube length	430,0	470,0	510,0	560,0
b Seat tube angle	73,0º	73,0º	73,0º	73,0º
c Top tube length	586,0	606,0	626,0	646,0
d Head tube length	115,0	130,0	145,0	160,0
e Head tube angle	70,0º	70,0º	70,0º	70,0º
f Rake	46,0	45,0	46,0	46,0
g Trail	87,0	88,0	87,0	87,0
h Wheelbase	1086,0	1106,0	1127,0	1148,0
i Chainstay length	436,0	436,0	436,0	436,0
j Bottom bracket drop	60,0	60,0	60,0	60,0
k Stack height	624,0	638,0	652,0	666,0
l Reach	394,0	410,0	425,0	441,0
m Standover height	723,0	759,0	796,0	839,0
x Bottom bracket height	314,0	314,0	314,0	314,0
y Front center	657,0	677,0	698,0	719,0
