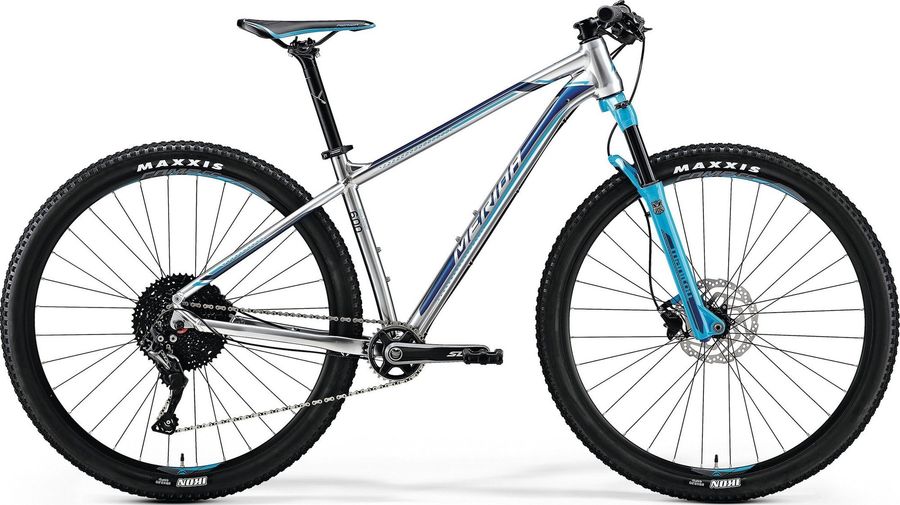

Merida BIG.NINE 600 2018
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
11,98 kg
Front travel
100mm
About the Merida BIG.NINE 600 2018
The Merida BIG.NINE 600 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes e tapered head tube. The bike weighs approximately 11,98 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Specifications
|
Saddle
|
MERIDA Sport
|
|---|---|
|
Headset
|
MERIDA M2331
|
|
Seatpost
|
MERIDA Comp in line 30.9mm
|
|
Handlebar
|
MERIDA Expert CC 720mm wide flat
|
|
Brake lever
|
Shimano M315
|
|
Brakes
|
Shimano Altus BR-M315
|
|
Crankset
|
Shimano SLX 30 teeth
|
|---|---|
|
Shifter
|
Shimano SLX 11 speed rapid fire with I-Spec II adapter
|
|
Rear derailleur
|
Shimano SLX RD-M7000-11-SGS
|
|
Chain
|
KMC X11
|
|
Cassette
|
Sunrace 11-speed
|
|
Frame
|
BIG.NINE TFS
|
|---|---|
|
Front suspension
|
Manitou Machete
|
|
Rims
|
MERIDA BIG.NINE Comp CC
|
|---|---|
|
Tires
|
Maxxis Ikon 29er 2.2" folding
|
|
Spokes
|
Black stainless
|
|
Rear hub
|
Sealed bearing 15mm bolt through front and Shimano 4050 quick release rear, centerlock
|
|
Front hub
|
Sealed bearing 15mm bolt through front and Shimano 4050 quick release rear, centerlock
|
Geometry
| Size | MD | SM | LG | XL | XXL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
430,0
|
370,0
|
470,0
|
510,0
|
560,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
594,0
|
574,0
|
614,0
|
634,0
|
654,0
|
|
d
Head tube length
|
115,0
|
100,0
|
130,0
|
145,0
|
160,0
|
|
e
Head tube angle
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
46,0
|
46,0
|
45,0
|
46,0
|
46,0
|
|
g
Trail
|
87,0
|
87,0
|
88,0
|
87,0
|
87,0
|
|
h
Wheelbase
|
1094,0
|
1073,0
|
1114,0
|
1135,0
|
1156,0
|
|
i
Chainstay length
|
444,0
|
444,0
|
444,0
|
444,0
|
444,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
632,0
|
618,0
|
646,0
|
660,0
|
674,0
|
|
l
Reach
|
402,0
|
386,0
|
418,0
|
433,0
|
449,0
|
|
m
Standover height
|
731,0
|
683,0
|
767,0
|
804,0
|
847,0
|
|
x
Bottom bracket height
|
314,0
|
314,0
|
314,0
|
314,0
|
314,0
|
|
y
Front center
|
657,0
|
636,0
|
677,0
|
698,0
|
719,0
|
