BikeWise

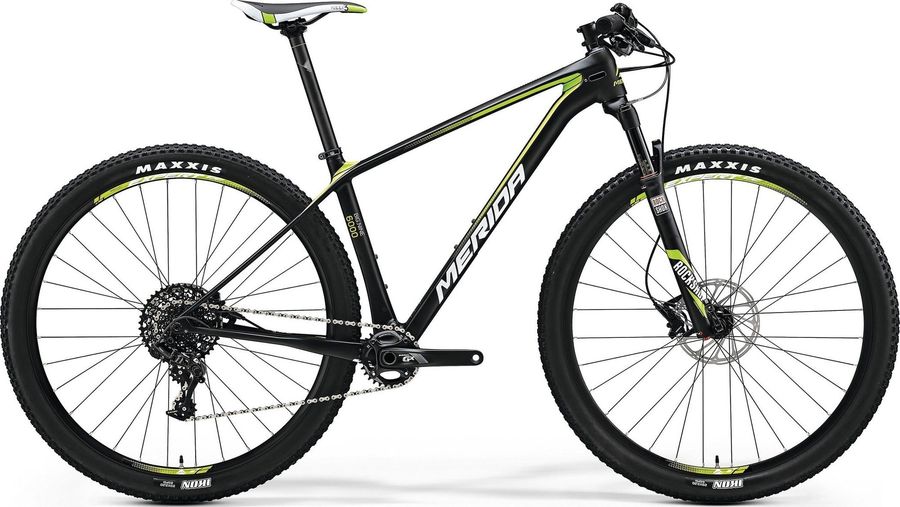

Merida BIG.NINE 6000 2017

MTB Cross Country
Groupset
SRAM GX
Wheel size
29"
Suspension type
Rigid
Weight
10,42 kg
Merida BIG.NINE 6000 2017

About the Merida BIG.NINE 6000 2017

The Merida BIG.NINE 6000 2017 is a Rigid Cross Country Mountain Bike. Equipped with a SRAM GX drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes. The bike weighs approximately 10,42 kg.

Features

The Merida BIG.NINE 6000 2017 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Saddle
Prologo Kappa 3
Headset
Big Conoid A-bearing
Seatpost
MERIDA carbon Expert SB0 30.9
Handlebar
MERIDA Expert OS 720 flat
Brake lever
SRAM Level T
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
SRAM GX1000 30T boost
Shifter
SRAM GX 11
Rear derailleur
SRAM GX 1x11 X-HORIZON Rear Derailleur 11s 265 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Black, Blue, Red
Max tooth
42
Model
RD-GX-1-A1
Name
GX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight based on
RD 1x11 Long Cage Black
Weight
265
Cassette
SRAM XG-1150 11s
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1150-A1
Name
XG-1150 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Chain
KMC X11
Frameset
Frame
BIG.NINE CF3
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Rims
MERIDA Expert CC
Tires
Maxxis Ikon 29er 2.2 fold
Spokes
Double Butted Black stainless
Rear hub
FoBearing disc 15 Torque / FoBearing disc boost XD
Front hub
FoBearing disc 15 Torque / FoBearing disc boost XD

Geometry

Size 15" 17" 19" 21" 23"
a
Seat tube length
380,0
444,0
483,0
532,0
584,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
582,0
602,0
622,0
642,0
662,0
d
Head tube length
95,0
100,0
110,0
125,0
145,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
46,0
46,0
46,0
46,0
46,0
g
Trail
87,0
87,0
87,0
87,0
87,0
h
Wheelbase
1077,0
1098,0
1118,0
1139,0
1160,0
i
Chainstay length
430,0
430,0
430,0
430,0
430,0
j
Bottom bracket drop
65,0
65,0
65,0
65,0
65,0
k
Stack height
614,0
619,0
628,0
642,0
661,0
l
Reach
399,0
418,0
435,0
451,0
465,0
m
Standover height
678,0
741,0
775,0
816,0
839,0
x
Bottom bracket height
309,0
309,0
309,0
309,0
309,0
y
Front center
655,0
676,0
696,0
717,0
738,0
