BikeWise

Merida BIG.NINE 7000 2018

MTB Cross Country
Groupset
Shimano XT
Wheel size
29"
Suspension type
Hardtail
Weight
10,12 kg
Front travel
100mm

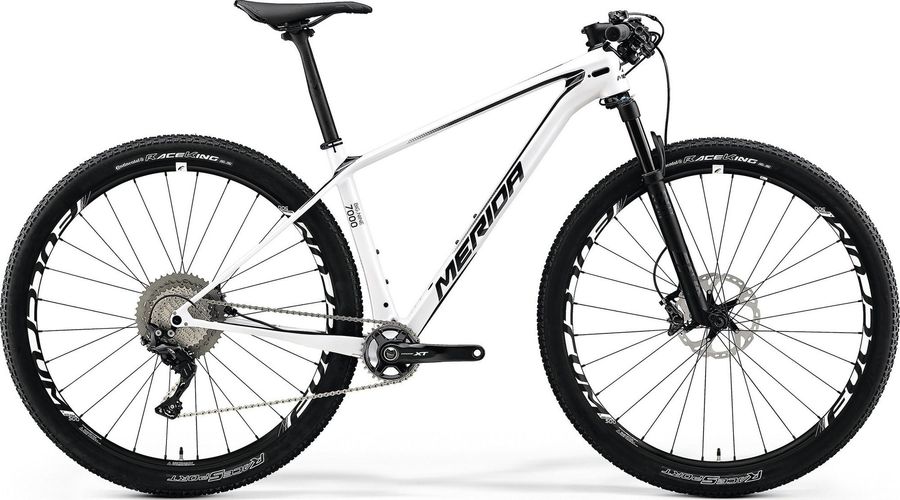

Merida BIG.NINE 7000 2018

About the Merida BIG.NINE 7000 2018

The Merida BIG.NINE 7000 2018 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes, tapered head tube, and remote lockout. The bike weighs approximately 10,12 kg.

Features

The Merida BIG.NINE 7000 2018 has 3 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Saddle
Prologo Scratch
Headset
FSA NO.55E
Seatpost
MERIDA Team carbon S-Flex in line 30.9mm
Handlebar
MERIDA Expert CC 720mm wide flat
Brake lever
Shimano XT
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano XT 30 teeth
Shifter
Shimano XT 11 speed rapid fire
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Chain
KMC X11
Frameset
Frame
BIG.NINE CF3
Front suspension
Fox 32 Float Performance SC
Wheels
Rims
Fulcrum Red Zone 500 wheelset, Boost standard, 15mm front and 12mm rear bolt through axles
Tires
Continental Race King Race Sport 2.2" SL

Geometry

Size SM MD LG XL XXL
a
Seat tube length
380,0
444,0
483,0
532,0
584,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
582,0
602,0
622,0
642,0
662,0
d
Head tube length
95,0
100,0
110,0
125,0
145,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
46,0
46,0
46,0
46,0
46,0
g
Trail
87,0
87,0
87,0
87,0
87,0
h
Wheelbase
1077,0
1098,0
1118,0
1139,0
1160,0
i
Chainstay length
430,0
430,0
430,0
430,0
430,0
j
Bottom bracket drop
65,0
65,0
65,0
65,0
65,0
k
Stack height
614,0
619,0
628,0
642,0
661,0
l
Reach
399,0
418,0
435,0
451,0
465,0
m
Standover height
678,0
741,0
775,0
816,0
839,0
x
Bottom bracket height
309,0
309,0
309,0
309,0
309,0
y
Front center
655,0
676,0
696,0
717,0
738,0
