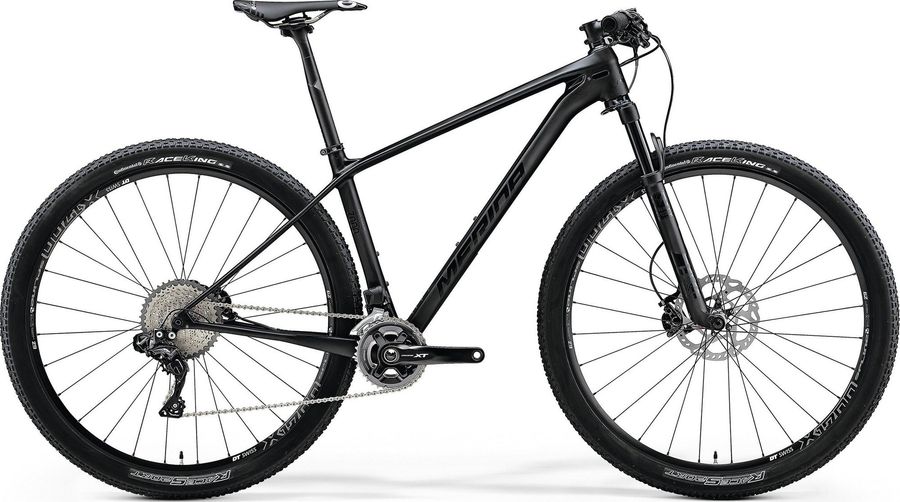

Merida BIG.NINE 7000-E 2017
The Merida BIG.NINE 7000-E 2017 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano XT Di2
Wheel size
29"
Suspension type
Hardtail
Weight
10,02 kg
Front travel
29mm
About the Merida BIG.NINE 7000-E 2017
The Merida BIG.NINE 7000-E 2017 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano XT Di2 drivetrain. Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 10,02 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Remote lockout
More info
Remote lockout
Specifications
|
Saddle
|
Prologo new Nago Evo X10 TiroX
|
|---|---|
|
Headset
|
Big Conoid A-bearing
|
|
Seatpost
|
MERIDA Carbon Expert S-Flex SB0 30.9
|
|
Handlebar
|
MERIDA Expert OS 720 flat
|
|
Brake lever
|
Shimano XT
|
|
Brakes
|
Shimano Deore XT BR-M8000
403 (BL-M8000) g
Hydraulic disc brake
2 piston
|
|
G03A Resin J03A Resin BL-T8000 SM-RT86 |
|
|
Crankset
|
Shimano: XT 36-26 boost PF
|
|---|---|
|
Shifter
|
Synchronized shifting / Shimano XT Di2
|
|
Front derailleur
|
Shimano XT Di2 double
|
|
Rear derailleur
|
Shimano XTR RD-M9050 Di2
|
|
Cassette
|
Shimano Deore XT CS-M8000
HG
|
|
11-42T 11-46T 11-42T: 434g 11-46T: 437g |
|
|
Chain
|
KMC X11
|
|
Frame
|
BIG.NINE CF3
|
|---|---|
|
Front suspension
|
Fox 32 Float Performance SC
|
|
Rims
|
DT Swiss X 1700 SPLINE TWO Boost
|
|---|---|
|
Tires
|
Continental Race King Race Sport 2.2 SL
|
|
Spokes
|
attached
|
|
Rear hub
|
attached
|
|
Front hub
|
attached
|
Geometry
| Size | 15" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
444,0
|
483,0
|
532,0
|
584,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
582,0
|
602,0
|
622,0
|
642,0
|
662,0
|
|
d
Head tube length
|
95,0
|
100,0
|
110,0
|
125,0
|
145,0
|
|
e
Head tube angle
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
46,0
|
46,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
87,0
|
87,0
|
87,0
|
87,0
|
87,0
|
|
h
Wheelbase
|
1077,0
|
1098,0
|
1118,0
|
1139,0
|
1160,0
|
|
i
Chainstay length
|
430,0
|
430,0
|
430,0
|
430,0
|
430,0
|
|
j
Bottom bracket drop
|
65,0
|
65,0
|
65,0
|
65,0
|
65,0
|
|
k
Stack height
|
614,0
|
619,0
|
628,0
|
642,0
|
661,0
|
|
l
Reach
|
399,0
|
418,0
|
435,0
|
451,0
|
465,0
|
|
m
Standover height
|
678,0
|
741,0
|
775,0
|
816,0
|
839,0
|
|
x
Bottom bracket height
|
309,0
|
309,0
|
309,0
|
309,0
|
309,0
|
|
y
Front center
|
655,0
|
676,0
|
696,0
|
717,0
|
738,0
|
