Merida BIG.NINE 80 2020

MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
14,8 kg
Front travel
100mm

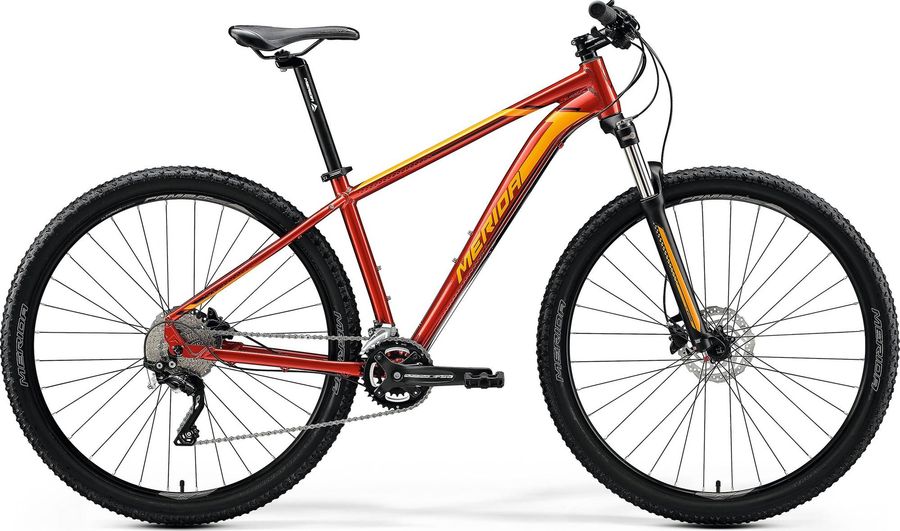

Merida BIG.NINE 80 2020

About the Merida BIG.NINE 80 2020

The Merida BIG.NINE 80 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 20 gears (2x10). Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 14,8 kg.

Features

The Merida BIG.NINE 80 2020 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Headset
FSA NO.10, AL cap with STS bolt+ ST stop nut
Seatpost
MERIDA CC, material: aluminium, 30.9mm diameter, 15mm setback
Handlebar
MERIDA CC, material: aluminium, 690mm width, 15mm rise
Brake lever
Shimano MT-200
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
FSA Alfa Drive, 36-22 teeth, 170 mm-S, 175 mm-M/XXL
Shifter
Shimano Deore
Bottom bracket
FSA TH-7420ST Cartridge Bearing, Shimano Deore
Front derailleur
Shimano Deore
Chain
KMC X10
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Rear derailleur
Shimano Deore XT RD-M781 238 g SGS 10s
Average weight (g)
238
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M781-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Frameset
Frame
BIG.NINE SPEED N, material: aluminium, 29" wheelsize, 135x9mm axle standard, BSA bottom bracket standard
Front suspension
SR Suntour XCR 32
Wheels
Rims
MERIDA CC, 17mm inner width, material: aluminium
Tires
MERIDA K1080, 29x2.2", wire
Spokes
Black stainless
Rear hub
Shimano TX505, 135x9mm width rear hub, 32 spoke holes, Centerlock
Front hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock

Geometry

Size SM MD LG XL XXL
a
Seat tube length
370,0
430,0
470,0
510,0
560,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
574,0
594,0
614,0
634,0
654,0
d
Head tube length
100,0
115,0
130,0
145,0
160,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
46,0
46,0
45,0
46,0
46,0
g
Trail
87,0
87,0
88,0
87,0
87,0
h
Wheelbase
1078,0
1099,0
1119,0
1140,0
1161,0
i
Chainstay length
449,0
449,0
449,0
449,0
449,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
60,0
k
Stack height
618,0
632,0
646,0
660,0
674,0
l
Reach
386,0
402,0
418,0
433,0
449,0
m
Standover height
691,0
743,0
779,0
813,0
855,0
x
Bottom bracket height
314,0
314,0
314,0
314,0
314,0
y
Front center
636,0
657,0
677,0
698,0
719,0
