Merida BIG.NINE 9000 2017

MTB Cross Country
Groupset
Shimano XTR
Wheel size
29"
Suspension type
Rigid
Weight
8,49 kg

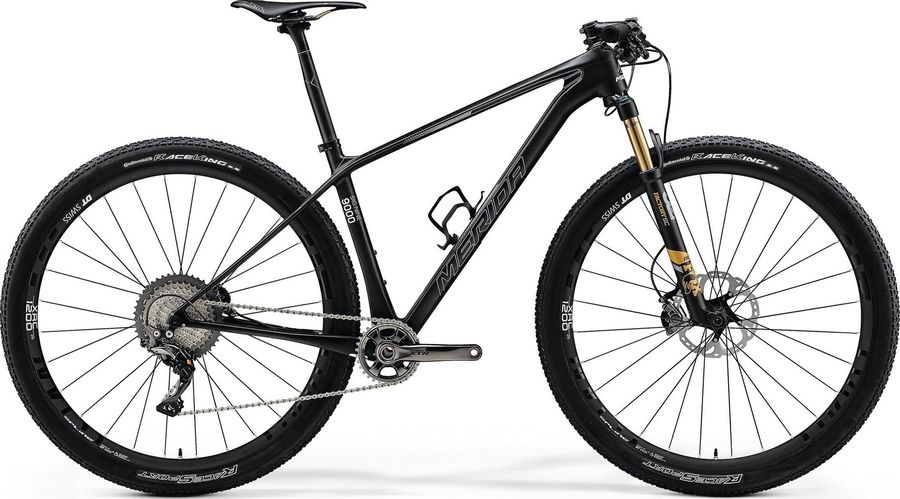

Merida BIG.NINE 9000 2017

About the Merida BIG.NINE 9000 2017

The Merida BIG.NINE 9000 2017 is a Rigid Cross Country Mountain Bike. Equipped with a Shimano XTR drivetrain. Its features include hydraulic disc brakes e remote lockout. The bike weighs approximately 8,49 kg.

Features

The Merida BIG.NINE 9000 2017 has 2 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Saddle
Selle Italia SLR KIT CARBONIO
Headset
Full integrated headset
Seatpost
MERIDA Carbon Team S-Flex SB0 30.9
Handlebar
MERIDA TEAM 720 OS flat
Brake lever
Shimano XTR
Brakes
Shimano XTR BR-M9000 316.1 g Hydraulic disc brake 2 piston
Average weight (g)
316.1
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Magnesium
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J02A Resin
J03A Resin
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
G04Ti Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Crankset
Shimano XTR 32 boost PF
Shifter
Shimano XTR-i
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Chain
KMC X11
Frameset
Frame
BIG.NINE CF5
Front suspension
Fox 32 Float Factory
Wheels
Rims
DT XRC 1200 Boost
Tires
Continental Race King Race Sport 2.2 SL
Spokes
attached
Rear hub
attached / DT Plug-in RWS boost
Front hub
attached / DT Plug-in RWS boost

Geometry

Size 15" 17" 19" 21"
a
Seat tube length
380,0
444,0
483,0
532,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
582,0
602,0
622,0
642,0
d
Head tube length
95,0
100,0
110,0
125,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
87,0
87,0
87,0
87,0
h
Wheelbase
1077,0
1098,0
1118,0
1139,0
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
65,0
65,0
65,0
65,0
k
Stack height
614,0
619,0
628,0
642,0
l
Reach
399,0
418,0
435,0
451,0
m
Standover height
678,0
741,0
775,0
816,0
x
Bottom bracket height
309,0
309,0
309,0
309,0
y
Front center
655,0
676,0
696,0
717,0
