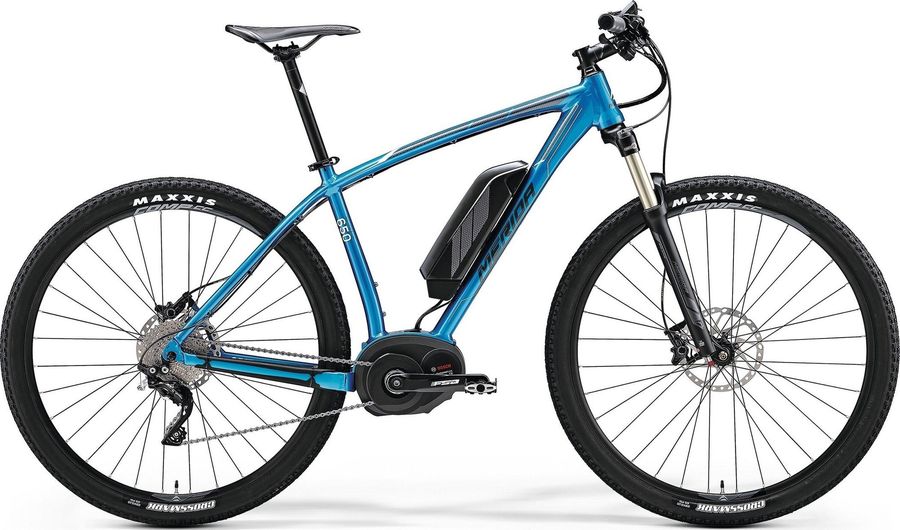

Merida BIG.NINE E-LITE 650 2017
The Merida BIG.NINE E-LITE 650 2017 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano XT
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm
About the Merida BIG.NINE E-LITE 650 2017
The Merida BIG.NINE E-LITE 650 2017 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano XT drivetrain. Its features include hydraulic disc brakes.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Remote
|
Bosch Intuvia
|
|---|
|
Saddle
|
MERIDA Sport
|
|---|---|
|
Battery
|
Bosch PowerPack 500Wh
|
|
Headset
|
BC pro Neck
|
|
Seatpost
|
MERIDA pro H SB0 27.2
|
|
Handlebar
|
MERIDA Pro 680 riser
|
|
Brake lever
|
BL-M615
|
|
Brakes
|
Shimano Deore BR-M615
|
|
Crankset
|
FSA CK-745
|
|---|---|
|
Motor
|
Bosch Performance Line CX
|
|
Shifter
|
Shimano Deore rapidfire plus 10 I-Spec
|
|
Rear derailleur
|
Shimano Deore RD-M6000-GS
GS
10s
|
|
|
|
|
Chain
|
KMC X10
|
|
Cassette
|
Shimano Deore CS-HG50-10
HG
|
|
|
|
|
Frame
|
BIG.NINE E-LITE
|
|---|---|
|
Front suspension
|
SR Suntour Raidon XC
|
|
Rims
|
BIG.NINE comp D
|
|---|---|
|
Tires
|
Crossmark 29 2.1 fold 60TPI
|
|
Spokes
|
stainless
|
|
Rear hub
|
Deore HB-M618 / Deore FH-M615
|
|
Front hub
|
Deore HB-M618 / Deore FH-M615
|
Geometry
| Size | 15" | 17" | 19" | 21" |
|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
445,0
|
483,0
|
532,0
|
|
b
Seat tube angle
|
72,0º
|
72,0º
|
72,0º
|
72,0º
|
|
c
Top tube length
|
577,0
|
597,0
|
617,0
|
639,0
|
|
d
Head tube length
|
110,0
|
110,0
|
110,0
|
120,0
|
|
e
Head tube angle
|
70,0º
|
70,0º
|
70,5º
|
70,5º
|
|
f
Rake
|
46,0
|
46,0
|
47,0
|
46,0
|
|
g
Trail
|
87,0
|
87,0
|
83,0
|
84,0
|
|
h
Wheelbase
|
1092,0
|
1112,0
|
1127,0
|
1149,0
|
|
i
Chainstay length
|
467,0
|
467,0
|
467,0
|
467,0
|
|
j
Bottom bracket drop
|
65,0
|
65,0
|
65,0
|
65,0
|
|
k
Stack height
|
625,0
|
625,0
|
627,0
|
637,0
|
|
l
Reach
|
373,0
|
393,0
|
412,0
|
431,0
|
|
m
Standover height
|
697,0
|
755,0
|
787,0
|
828,0
|
|
x
Bottom bracket height
|
309,0
|
309,0
|
309,0
|
309,0
|
|
y
Front center
|
633,0
|
653,0
|
668,0
|
690,0
|
