Merida BIG.NINE SLX-EDITION 2020

MTB Cross Country
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
11,86 kg
Front travel
100mm

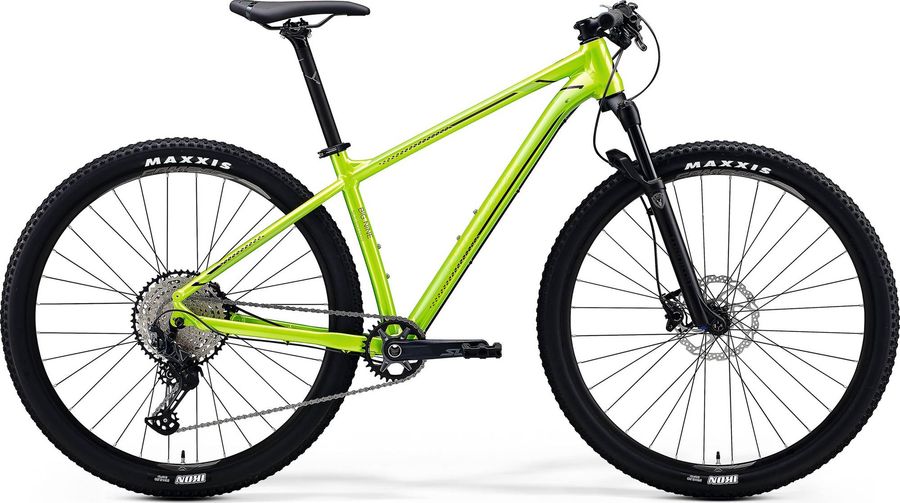

Merida BIG.NINE SLX-EDITION 2020

About the Merida BIG.NINE SLX-EDITION 2020

The Merida BIG.NINE SLX-EDITION 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include boost 110 , hydraulic disc brakes, and tapered head tube. The bike weighs approximately 11,86 kg.

Features

The Merida BIG.NINE SLX-EDITION 2020 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Saddle
MERIDA COMP CC
Headset
MERIDA M2331
Seatpost
MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback
Handlebar
MERIDA EXPERT CC, material: aluminium, 720mm width, flat
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano SLX, 32 teeth, 170 mm-S, 175 mm-M up
Shifter
Shimano SLX
Bottom bracket
Shimano BB-MT800
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Rear derailleur
Shimano SLX RD-M7100 313 g SGS 12s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M7100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
BIG.NINE TFS, material: aluminum, 29 wheelsize, 135x9mm axle standard, BSA bottom bracket standard, Smooth welding
Front suspension
Manitou Markhor
Wheels
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Tires
Maxxis Ikon, 29x2.2", fold
Spokes
Black stainless
Rear hub
Shimano MT500, 135x9mm width rear hub, 32 spoke holes, Centerlock
Front hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock

Geometry

Size SM MD LG XL XXL
a
Seat tube length
370,0
430,0
470,0
510,0
560,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
574,0
594,0
614,0
634,0
654,0
d
Head tube length
100,0
115,0
130,0
145,0
160,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
46,0
46,0
45,0
46,0
46,0
g
Trail
87,0
87,0
88,0
87,0
87,0
h
Wheelbase
1073,0
1094,0
1114,0
1135,0
1156,0
i
Chainstay length
444,0
444,0
444,0
444,0
444,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
60,0
k
Stack height
618,0
632,0
646,0
660,0
674,0
l
Reach
386,0
402,0
418,0
433,0
449,0
m
Standover height
683,0
731,0
767,0
804,0
847,0
x
Bottom bracket height
314,0
314,0
314,0
314,0
314,0
y
Front center
636,0
657,0
677,0
698,0
719,0
