BikeWise

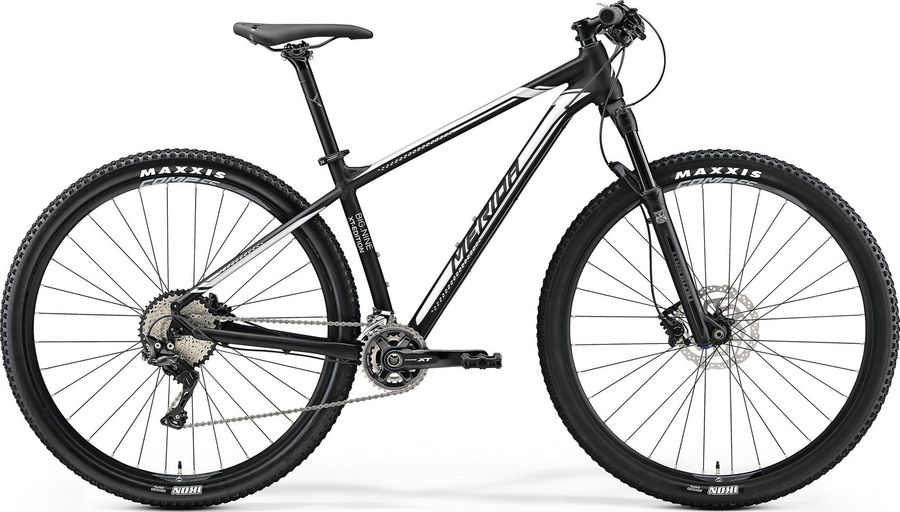

Merida BIG.NINE XT-EDITION 2019

MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
11,79 kg
Front travel
100mm
Merida BIG.NINE XT-EDITION 2019

About the Merida BIG.NINE XT-EDITION 2019

The Merida BIG.NINE XT-EDITION 2019 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include hydraulic disc brakes, tapered head tube, and remote lockout. The bike weighs approximately 11,79 kg.

Features

The Merida BIG.NINE XT-EDITION 2019 has 3 features listed below.
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Grip
Merida Comp EC
Pedals
VP VPE-891
Components
Steam
Merida Expert CC, 31.8mm diameter, -6° stem angle
Saddle
MERIDA Comp CC
Headset
MERIDA M2331, 2191025563
Seatpost
MERIDA Comp CC, 30.9mm diameter, 0mm setback
Handlebar
MERIDA Expert CC, 720mm width, flat
Brake lever
Shimano MT-500
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano XT, 34-24 teeth
Shifter
Shimano XT
Bottom bracket
Shimano MT800-PA press-fit
Front derailleur
Shimano XT
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
BIG.NINE TFS
Front suspension
Manitou Machete
Wheels
Rims
MERIDA Comp CC, 20mm inner width
Tires
Maxxis Ikon, 29x2.2", fold
Spokes
Black stainless
Rear hub
Joytech D791SB, 100x15mm width, 32 spoke holes, Centerlock / Shimano M4050, 135x9mm width, 32 spoke holes, Centerlock
Front hub
Joytech D791SB, 100x15mm width, 32 spoke holes, Centerlock / Shimano M4050, 135x9mm width, 32 spoke holes, Centerlock

Geometry

Size SM MD LG XL XXL
a
Seat tube length
370,0
430,0
470,0
510,0
560,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
574,0
594,0
614,0
634,0
654,0
d
Head tube length
100,0
115,0
130,0
145,0
160,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
46,0
46,0
45,0
46,0
46,0
g
Trail
87,0
87,0
88,0
87,0
87,0
h
Wheelbase
1073,0
1094,0
1114,0
1135,0
1156,0
i
Chainstay length
444,0
444,0
444,0
444,0
444,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
60,0
k
Stack height
618,0
632,0
646,0
660,0
674,0
l
Reach
386,0
402,0
418,0
433,0
449,0
m
Standover height
683,0
731,0
767,0
804,0
847,0
x
Bottom bracket height
314,0
314,0
314,0
314,0
314,0
y
Front center
636,0
657,0
677,0
698,0
719,0
