Merida BIG.NINE XT2 2020

MTB Cross Country
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Weight
12,29 kg
Front travel
100mm

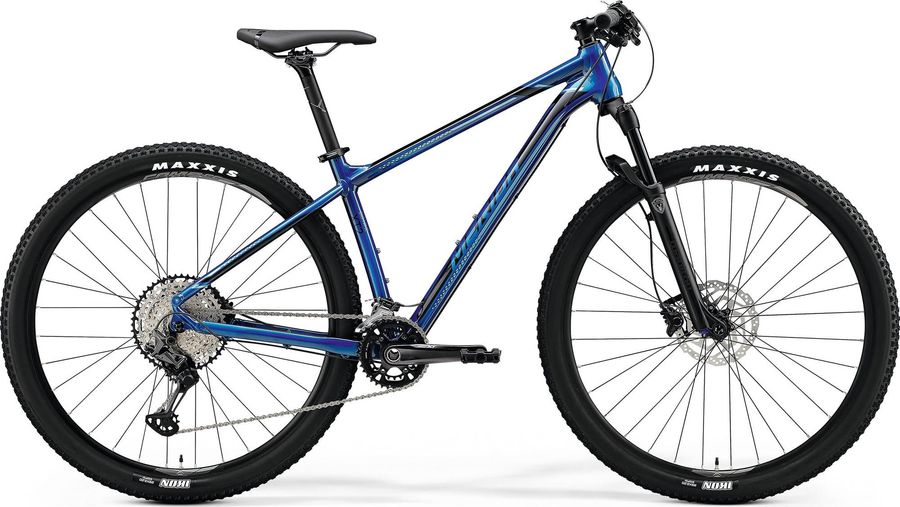

Merida BIG.NINE XT2 2020

About the Merida BIG.NINE XT2 2020

The Merida BIG.NINE XT2 2020 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 24 gears (2x12). Its features include boost 110 , hydraulic disc brakes, and tapered head tube. The bike weighs approximately 12,29 kg.

Features

The Merida BIG.NINE XT2 2020 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Saddle
MERIDA COMP CC
Headset
MERIDA M2331
Seatpost
MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback
Handlebar
MERIDA EXPERT CC, material: aluminium, 720mm width, flat
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano XT, 36-26 teeth, 170 mm-S, 175 mm-M up
Shifter
Shimano XT
Bottom bracket
Shimano BB-MT800
Front derailleur
Shimano SLX
Rear derailleur
Shimano RD-M8120-SGS 287 g SGS
Average weight (g)
287
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
45T
Lower pulley min
45T
Model
RD-M8120-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Upper pulley max
10T
Upper pulley min
10T
Total capacity
45T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
BIG.NINE TFS, material: aluminum, 29 wheelsize, 135x9mm axle standard, BSA bottom bracket standard, Smooth welding
Front suspension
Manitou Markhor
Wheels
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Tires
Maxxis Ikon, 29x2.2", fold
Spokes
Black stainless
Rear hub
Shimano MT500, 135x9mm width rear hub, 32 spoke holes, Centerlock
Front hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock

Geometry

Size SM MD LG XL XXL
a
Seat tube length
370,0
430,0
470,0
510,0
560,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
73,0º
c
Top tube length
574,0
594,0
614,0
634,0
654,0
d
Head tube length
100,0
115,0
130,0
145,0
160,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
70,0º
f
Rake
46,0
46,0
45,0
46,0
46,0
g
Trail
87,0
87,0
88,0
87,0
87,0
h
Wheelbase
1073,0
1094,0
1114,0
1135,0
1156,0
i
Chainstay length
444,0
444,0
444,0
444,0
444,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
60,0
k
Stack height
618,0
632,0
646,0
660,0
674,0
l
Reach
386,0
402,0
418,0
433,0
449,0
m
Standover height
683,0
731,0
767,0
804,0
847,0
x
Bottom bracket height
314,0
314,0
314,0
314,0
314,0
y
Front center
636,0
657,0
677,0
698,0
719,0
