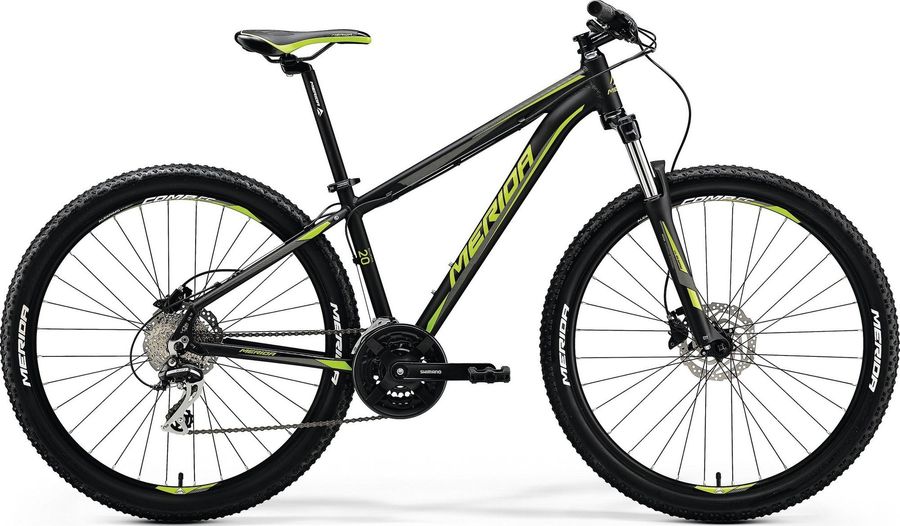

Merida BIG.SEVEN 20-D 2018
Groupset
Shimano Acera
Wheel size
27,5"
Suspension type
Hardtail
Weight
15 kg
Front travel
100mm
About the Merida BIG.SEVEN 20-D 2018
The Merida BIG.SEVEN 20-D 2018 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano Acera drivetrain of 24 gears (3x8). Its features include hydraulic disc brakes. The bike weighs approximately 15 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Saddle
|
MERIDA Sport comfort
|
|---|---|
|
Headset
|
MERIDA 2211
|
|
Seatpost
|
MERIDA Speed 27.2mm
|
|
Handlebar
|
MERIDA Speed Oversize clamp 690mm wide 15mm rise
|
|
Brake lever
|
Shimano EF505
|
|
Brakes
|
Shimano EF505 Hidráulico
|
|
Chain
|
KMC M700
|
|---|---|
|
Crankset
|
Shimano TY301 42-34-24 with chainguard
|
|
Shifter
|
Shimano EF505 24 speed EZ-fire shifters
|
|
Front derailleur
|
ShimanoTY700
|
|
Cassette
|
Sunrace M66 11-34T 8-speed
|
|
Rear derailleur
|
Shimano Acera RD-M360
SGS
8/7s
|
|
|
|
|
Frame
|
BIG.SEVEN SPEED
|
|---|---|
|
Front suspension
|
SR Suntour XCM
|
|
Rims
|
MERIDA aluminium, 32 hole for disc brakes
|
|---|---|
|
Tires
|
MERIDA K1080 27.5" *2.2" wire bead 30tpi
|
|
Spokes
|
Black steel
|
|
Rear hub
|
Shimano TX505 32 hole quick release with centerlock
|
|
Front hub
|
Shimano TX505 32 hole quick release with centerlock
|
Geometry
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
|
a
Seat tube length
|
343,0
|
381,0
|
432,0
|
470,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
544,0
|
554,0
|
569,0
|
579,0
|
|
d
Head tube length
|
100,0
|
105,0
|
115,0
|
125,0
|
|
e
Head tube angle
|
70,0º
|
70,0º
|
70,5º
|
70,5º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
85,0
|
85,0
|
81,0
|
81,0
|
|
h
Wheelbase
|
1036,0
|
1047,0
|
1051,0
|
1062,0
|
|
i
Chainstay length
|
424,0
|
424,0
|
424,0
|
424,0
|
|
j
Bottom bracket drop
|
53,0
|
53,0
|
53,0
|
53,0
|
|
k
Stack height
|
587,0
|
592,0
|
603,0
|
613,0
|
|
l
Reach
|
368,0
|
377,0
|
383,0
|
390,0
|
|
m
Standover height
|
644,0
|
680,0
|
725,0
|
758,0
|
|
x
Bottom bracket height
|
302,0
|
302,0
|
302,0
|
302,0
|
|
y
Front center
|
618,0
|
629,0
|
633,0
|
643,0
|
