Merida BIG.SEVEN 40-D 2017

MTB Cross Country
Groupset
Shimano Altus
Wheel size
27,5"
Suspension type
Hardtail
Weight
15,3 kg

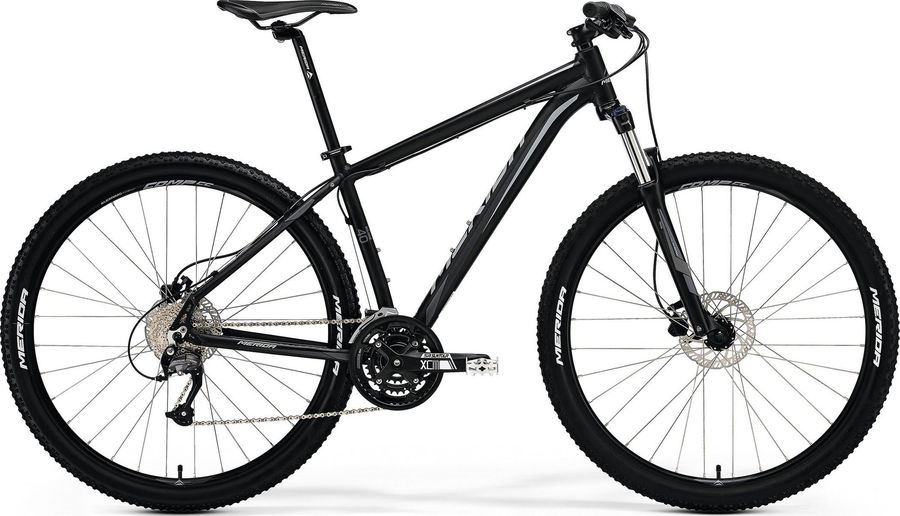

Merida BIG.SEVEN 40-D 2017

About the Merida BIG.SEVEN 40-D 2017

The Merida BIG.SEVEN 40-D 2017 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano Altus drivetrain of 27 gears (3x9). Its features include hydraulic disc brakes. The bike weighs approximately 15,3 kg.

Features

The Merida BIG.SEVEN 40-D 2017 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Saddle
MERIDA Sport
Headset
EGG steel-B
Seatpost
MERIDA speed 27.2
Handlebar
MERIDA OS 690 R15
Brake lever
attached
Brakes
Tektro MA
Drivetrain
Chain
Chain 9S
Crankset
SR XCM 44-32-22 CG
Shifter
Shimano Altus rapidfire
Front derailleur
Shimano Altus
Cassette
Sunrace 9-speed
Rear derailleur
Shimano Altus RD-M2000 SGS 9s
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M2000
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Frameset
Frame
BIG.SEVEN SPEED
Front suspension
SR Suntour XCM HLO
Wheels
Rims
MERIDA Big 7 D
Tires
MERIDA 27 2.1
Spokes
stainless silver
Rear hub
Alloy Disc / Alloy Disc cassette
Front hub
Alloy Disc / Alloy Disc cassette

Geometry

Size 13.5" 15" 17" 18.5" 20" 21.5"
a
Seat tube length
343,0
381,0
432,0
470,0
546,0
584,0
b
Seat tube angle
73,5º
73,5º
73,0º
73,0º
72,5º
72,5º
c
Top tube length
550,0
560,0
575,0
585,0
605,0
615,0
d
Head tube length
100,0
105,0
115,0
125,0
145,0
155,0
e
Head tube angle
70,0º
70,0º
70,5º
70,5º
71,0º
71,0º
f
Rake
42,0
42,0
42,0
42,0
43,0
43,0
g
Trail
85,0
85,0
81,0
81,0
77,0
77,0
h
Wheelbase
1042,0
1053,0
1057,0
1068,0
1077,0
1087,0
i
Chainstay length
430,0
430,0
430,0
430,0
430,0
430,0
j
Bottom bracket drop
53,0
53,0
53,0
53,0
53,0
53,0
k
Stack height
593,0
598,0
609,0
619,0
640,0
649,0
l
Reach
374,0
383,0
389,0
396,0
403,0
410,0
m
Standover height
650,0
686,0
731,0
764,0
826,0
856,0
x
Bottom bracket height
302,0
302,0
302,0
302,0
302,0
302,0
y
Front center
618,0
629,0
633,0
643,0
652,0
662,0
