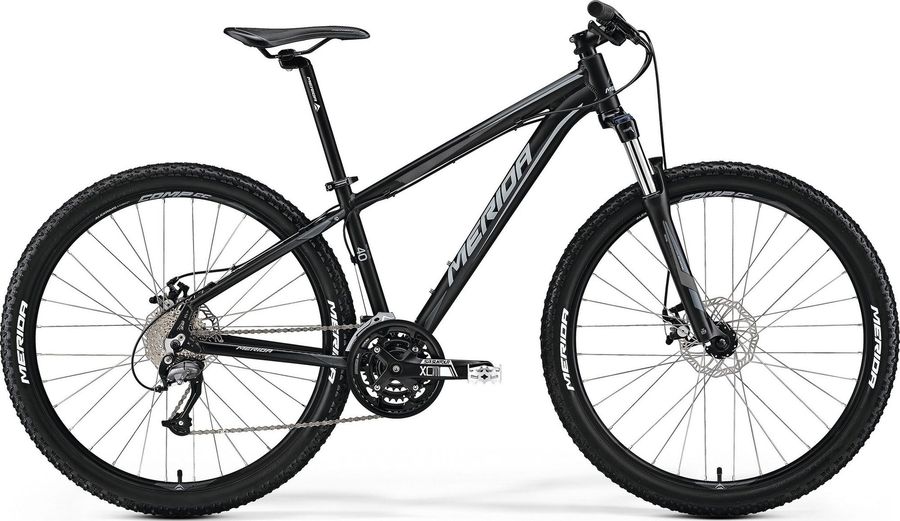

Merida BIG.SEVEN 40-MD 2017
Groupset
Shimano Altus
Wheel size
27,5"
Suspension type
Hardtail
Weight
15,2 kg
About the Merida BIG.SEVEN 40-MD 2017
The Merida BIG.SEVEN 40-MD 2017 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano Altus drivetrain of 27 gears (3x9). The bike weighs approximately 15,2 kg.
Specifications
|
Saddle
|
MERIDA Sport
|
|---|---|
|
Headset
|
EGG steel-B
|
|
Seatpost
|
MERIDA speed 27.2
|
|
Handlebar
|
MERIDA OS 690 R15
|
|
Brake lever
|
attached
|
|
Brakes
|
Promax MTD-3.0
|
|
Chain
|
Chain 9S
|
|---|---|
|
Crankset
|
SR XCM 44-32-22 CG
|
|
Shifter
|
Shimano Altus ST rapidfire / Shimano Altus ST rapidfire 9
|
|
Front derailleur
|
Shimano M370
|
|
Cassette
|
Sunrace 9-speed
|
|
Rear derailleur
|
Shimano Altus RD-M2000
SGS
9s
|
|
|
|
|
Frame
|
BIG.SEVEN SPEED
|
|---|---|
|
Front suspension
|
SR Suntour XCM HLO
|
|
Rims
|
MERIDA Big 7 D
|
|---|---|
|
Tires
|
MERIDA 27 2.1
|
|
Spokes
|
stainless silver
|
|
Rear hub
|
Alloy Disc / Alloy Disc cassette
|
|
Front hub
|
Alloy Disc / Alloy Disc cassette
|
Geometry
| Size | 13.5" | 15" | 17" | 18.5" | 20" | 21.5" |
|---|---|---|---|---|---|---|
|
a
Seat tube length
|
343,0
|
381,0
|
432,0
|
470,0
|
546,0
|
584,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,0º
|
73,0º
|
72,5º
|
72,5º
|
|
c
Top tube length
|
550,0
|
560,0
|
575,0
|
585,0
|
605,0
|
615,0
|
|
d
Head tube length
|
100,0
|
105,0
|
115,0
|
125,0
|
145,0
|
155,0
|
|
e
Head tube angle
|
70,0º
|
70,0º
|
70,5º
|
70,5º
|
71,0º
|
71,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
43,0
|
43,0
|
|
g
Trail
|
85,0
|
85,0
|
81,0
|
81,0
|
77,0
|
77,0
|
|
h
Wheelbase
|
1042,0
|
1053,0
|
1057,0
|
1068,0
|
1077,0
|
1087,0
|
|
i
Chainstay length
|
430,0
|
430,0
|
430,0
|
430,0
|
430,0
|
430,0
|
|
j
Bottom bracket drop
|
53,0
|
53,0
|
53,0
|
53,0
|
53,0
|
53,0
|
|
k
Stack height
|
593,0
|
598,0
|
609,0
|
619,0
|
640,0
|
649,0
|
|
l
Reach
|
374,0
|
383,0
|
389,0
|
396,0
|
403,0
|
410,0
|
|
m
Standover height
|
650,0
|
686,0
|
731,0
|
764,0
|
826,0
|
856,0
|
|
x
Bottom bracket height
|
302,0
|
302,0
|
302,0
|
302,0
|
302,0
|
302,0
|
|
y
Front center
|
618,0
|
629,0
|
633,0
|
643,0
|
652,0
|
662,0
|
