Merida BIG.SEVEN 500 2017

MTB Cross Country
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
12,83 kg

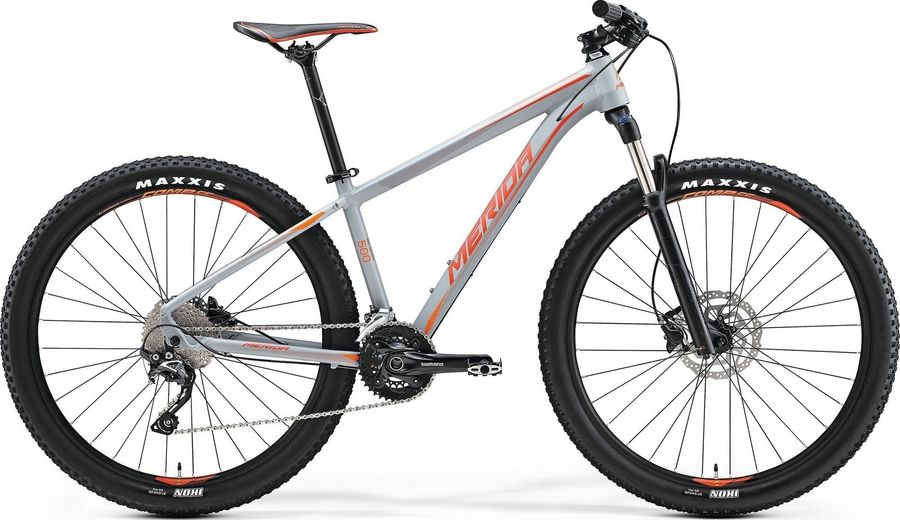

Merida BIG.SEVEN 500 2017

About the Merida BIG.SEVEN 500 2017

The Merida BIG.SEVEN 500 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 20 gears (2x10). Its features include hydraulic disc brakes. The bike weighs approximately 12,83 kg.

Features

The Merida BIG.SEVEN 500 2017 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Saddle
MERIDA Sport
Headset
BC OV Neck
Seatpost
MERIDA comp SB12 27.2
Handlebar
MERIDA comp OS 700 R12
Brake lever
attached
Brakes
Shimano Altus BR-M315
Drivetrain
Crankset
Shimano M627 38-24
Shifter
Shimano Deore
Front derailleur
Shimano Deore double
Chain
KMC X10
Rear derailleur
Shimano SLX RD-M670-SGS 281 g SGS 10s
Average weight (g)
281
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M670-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Frameset
Front suspension
Rock Shox FS 30STK27 SA 100
Frame
BIG.SEVEN TFS
Wheels
Rims
MERIDA Big 7 comp CC
Tires
Maxxis Ikon 27.5 2.2 fold
Spokes
Black stainless
Rear hub
Shimano Centerlock
Front hub
Shimano Centerlock

Geometry

Size 13.5" 15" 17" 20" 21.5"
a
Seat tube length
343,0
381,0
432,0
508,0
546,0
b
Seat tube angle
73,5º
73,5º
73,0º
73,0º
72,5º
c
Top tube length
549,0
559,0
579,0
599,0
609,0
d
Head tube length
95,0
100,0
105,0
125,0
135,0
e
Head tube angle
70,5º
70,5º
71,0º
71,0º
71,5º
f
Rake
42,0
42,0
43,0
41,0
42,0
g
Trail
81,0
81,0
77,0
79,0
75,0
h
Wheelbase
1039,0
1049,0
1059,0
1079,0
1078,0
i
Chainstay length
424,0
424,0
424,0
424,0
424,0
j
Bottom bracket drop
45,0
45,0
45,0
45,0
45,0
k
Stack height
576,0
581,0
588,0
607,0
618,0
l
Reach
377,0
385,0
397,0
412,0
412,0
m
Standover height
657,0
692,0
735,0
798,0
827,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
310,0
y
Front center
619,0
629,0
639,0
659,0
658,0
