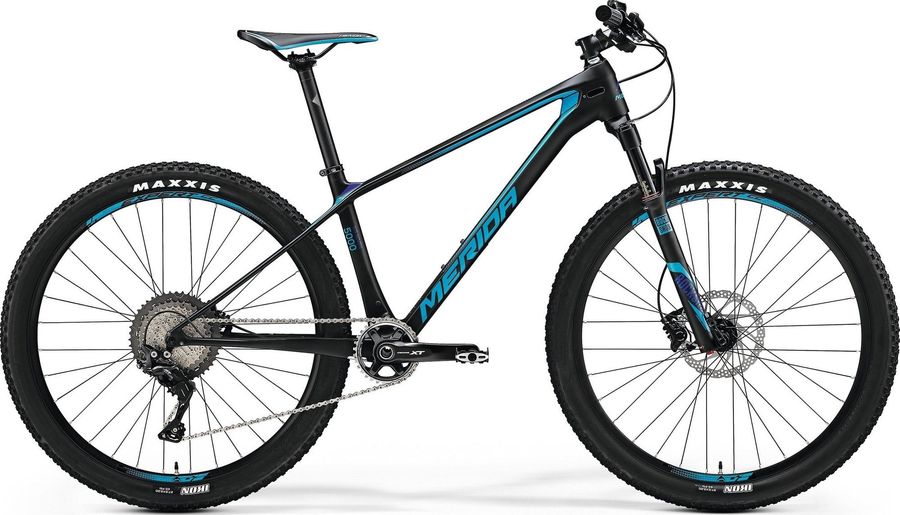

Merida BIG.SEVEN 5000 2017

MTB Cross Country

Groupset

Shimano XT

Wheel size

27,5"

Suspension type

Rigid

Weight

10,67 kg

About the Merida BIG.SEVEN 5000 2017

The Merida BIG.SEVEN 5000 2017 is a Rigid Cross Country Mountain Bike. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include hydraulic disc brakes. The bike weighs approximately 10,67 kg.

Features

The Merida BIG.SEVEN 5000 2017 has 1 features listed below.

Hydraulic disc brakes More info

Specifications

Components
Saddle	MERIDA Sport
Headset	Big Conoid A-bearing neck
Seatpost	MERIDA carbon Expert SB0 30.9
Handlebar	MERIDA Expert OS lite 720 R10
Brake lever	Shimano M506
Brakes	Shimano BR-M447

Drivetrain
Crankset	Shimano XT 32T boost PF
Shifter	Shimano SLX-i
Rear derailleur	Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g) 271 B axle hollow B axle material Stainless steel Bracket finish Painted Bracket material Aluminum Bracket body finish Painted Bracket body material Aluminum Compatible chain HG-X 11-speed Lower pulley max 42T(2x11-speed), 46T(1x11-speed) Lower pulley min 40T Model RD-M8000-GS P axle material Steel pulley.guide_pulley_bearing Sealed bearing pulley.screws_material Stainless steel pulley.sunken_type_pulley_screw Pulley teeth 11T pulley.tension_pulley_bearing Sealed bearing Pulley cage GS Speeds 11 Upper pulley max 11T Upper pulley min 11T Total capacity 39T
Cassette	Shimano Deore XT CS-M8000 HG
Aluminum gear pieces 2 Aluminum spider arm finish Anodized Aluminum spider arm pieces 2 Combination names 11-40T 11-42T 11-46T Compatible chain HG 11-speed, LG Lock ring finish Anodized Lock ring material Aluminum Model CS-M8000 Steel gear finish Shot-Ni Steel gear pieces 9 Type HG Weights 11-40T: 411g 11-42T: 434g 11-46T: 437g
Chain	KMC X11

Frameset
Frame	BIG.SEVEN CF3
Front suspension	RockShox Reba RL Solo Air 1620 g
Color Diffusion Black, Gloss Black, Gloss White Damper type n/a, RL fork offset 40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29") Maximum rotor size 200mm Minimum rotor size 160mm Model FS-REBA-RL-A6 Name Reba RL Spring Solo Air Travel (mm) 100mm, 120mm, 80mm Upper tube type 32mm straight wall aluminum Weight based on 15x100 Maxle Stealth, Tapered steerer, 120mm travel Weight 1620 Wheel size 26", 27.5", 27.5" B, 29", 29" B/27.5"+

Wheels
Rims	MERIDA Expert CC
Tires	Maxxis Ikon 27.5 2.2 fold
Spokes	Double Butted Black stainless
Rear hub	FoBearing Cen 15 Torque / FoBearing Cen boost XD
Front hub	FoBearing Cen 15 Torque / FoBearing Cen boost XD
