Merida BIG.SEVEN 600 2017
Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Weight
12,09 kg
Front travel
100mm

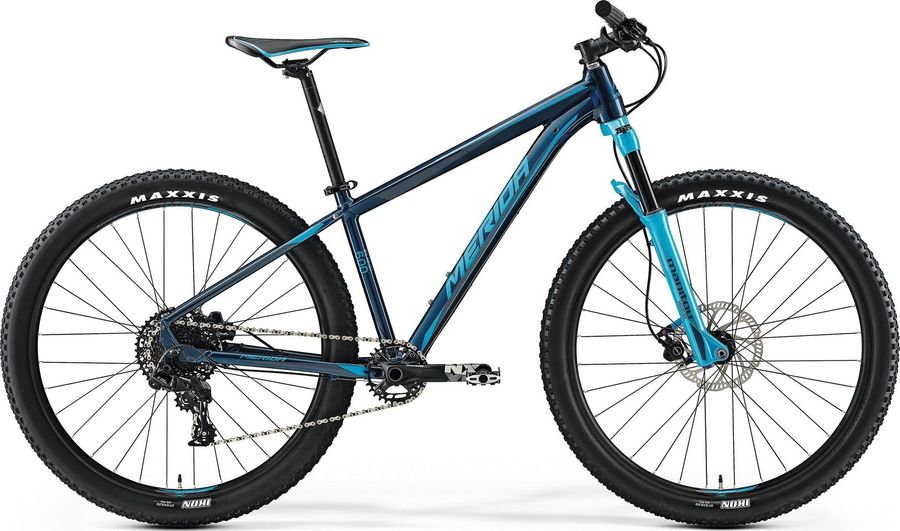

About the Merida BIG.SEVEN 600 2017
The Merida BIG.SEVEN 600 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain. Its features include hydraulic disc brakes. The bike weighs approximately 12,09 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Saddle
|
MERIDA Sport
|
|---|---|
|
Headset
|
Big Conoid Semi Neck
|
|
Seatpost
|
MERIDA Expert SB15 27.2
|
|
Handlebar
|
MERIDA Expert OS 720 R12
|
|
Brake lever
|
attached
|
|
Brakes
|
Tektro Gemini
|
|
Crankset
|
SRAM NX XSYNC 30 STEEL
|
|---|---|
|
Shifter
|
SRAM NX 11
|
|
Rear derailleur
|
SRAM NX
11s
322 g
|
|
|
|
|
Cassette
|
SRAM PG-1130
11s
|
|
11-28t:11,12,13,14,15,16,17,19,22,25,28 11-32t:11,12,13,14,15,17,19,22,25,28,32 11-36t:11,12,13,15,17,19,22,25,28,32,36 11-42t: 11,13,15,17,19,22,25,28,32,36,42 11-28t 11-32t 11-36t 11-42t |
|
|
Chain
|
KMC X11
|
|
Front suspension
|
Manitou Marvel comp 27 100 15 taper
|
|---|---|
|
Frame
|
BIG.SEVEN TFS
|
|
Rims
|
MERIDA Big 7 comp CC
|
|---|---|
|
Tires
|
Maxxis Ikon 27.5 2.2 fold
|
|
Spokes
|
Black stainless
|
|
Rear hub
|
FoBearing disc 15 / Bearing Disc cassette
|
|
Front hub
|
FoBearing disc 15 / Bearing Disc cassette
|
Geometry
| Size | 13.5" | 15" | 17" | 20" | 21.5" |
|---|---|---|---|---|---|
|
a
Seat tube length
|
343,0
|
381,0
|
432,0
|
508,0
|
546,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,0º
|
73,0º
|
72,5º
|
|
c
Top tube length
|
549,0
|
559,0
|
579,0
|
599,0
|
609,0
|
|
d
Head tube length
|
95,0
|
100,0
|
105,0
|
125,0
|
135,0
|
|
e
Head tube angle
|
70,5º
|
70,5º
|
71,0º
|
71,0º
|
71,5º
|
|
f
Rake
|
42,0
|
42,0
|
43,0
|
41,0
|
42,0
|
|
g
Trail
|
81,0
|
81,0
|
77,0
|
79,0
|
75,0
|
|
h
Wheelbase
|
1039,0
|
1049,0
|
1059,0
|
1079,0
|
1078,0
|
|
i
Chainstay length
|
424,0
|
424,0
|
424,0
|
424,0
|
424,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
576,0
|
581,0
|
588,0
|
607,0
|
618,0
|
|
l
Reach
|
377,0
|
385,0
|
397,0
|
412,0
|
412,0
|
|
m
Standover height
|
657,0
|
692,0
|
735,0
|
798,0
|
827,0
|
|
x
Bottom bracket height
|
310,0
|
310,0
|
310,0
|
310,0
|
310,0
|
|
y
Front center
|
619,0
|
629,0
|
639,0
|
659,0
|
658,0
|
