Merida BIG.SEVEN 800 2017
Groupset
Shimano SLX
Wheel size
27,5"
Suspension type
Hardtail
Weight
11,44 kg
Front travel
27mm
About the Merida BIG.SEVEN 800 2017

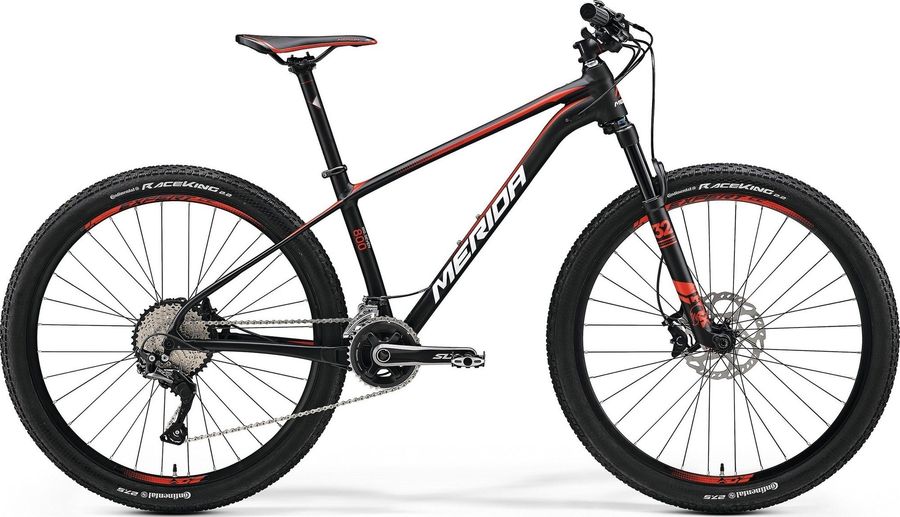

The Merida BIG.SEVEN 800 2017 is a Hardtail Cross Country Mountain Bike. Equipped with a Shimano SLX drivetrain of 22 gears (2x11). Its features include hydraulic disc brakes. The bike weighs approximately 11,44 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Saddle
|
MERIDA Sport
|
|---|---|
|
Headset
|
Big Conoid A-bearing neck
|
|
Seatpost
|
MERIDA Expert SB0 30.9
|
|
Handlebar
|
MERIDA Expert OS 720 R12
|
|
Brake lever
|
Shimano SLX
|
|
Brakes
|
Shimano SLX BR-M7000
|
|
Crankset
|
Shimano SLX 36-26 boost PF
|
|---|---|
|
Shifter
|
Shimano SLX-i
|
|
Front derailleur
|
Shimano SLX direct
|
|
Cassette
|
Shimano SLX CS-M7000-11
HG
|
|
1 (11-42T) 2 (11-46T) 11-42T 11-46T 10 (11-42T) 9 (11-46T) 11-42T: 476g 11-46T: 482g |
|
|
Rear derailleur
|
Shimano SLX RD-M7000-11-SGS
|
|
Chain
|
KMC X11
|
|
Frame
|
BIG.SEVEN LITE
|
|---|---|
|
Front suspension
|
Fox 32 Float Performance SC
|
|
Rims
|
MERIDA Expert CC
|
|---|---|
|
Tires
|
Continental Race-King 27 2.2 fold
|
|
Spokes
|
Double Butted Black stainless
|
|
Rear hub
|
Shimano Deore 15 cen boost / Shimano Deore-12 cen boost
|
|
Front hub
|
Shimano Deore 15 cen boost / Shimano Deore-12 cen boost
|
Geometry
| Size | 13.5" | 15" | 17" | 19" |
|---|---|---|---|---|
|
a
Seat tube length
|
342,0
|
381,0
|
444,0
|
483,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
558,0
|
578,0
|
598,0
|
618,0
|
|
d
Head tube length
|
105,0
|
110,0
|
120,0
|
135,0
|
|
e
Head tube angle
|
69,0º
|
69,0º
|
69,0º
|
69,0º
|
|
f
Rake
|
41,0
|
39,0
|
37,0
|
43,0
|
|
g
Trail
|
93,0
|
95,0
|
97,0
|
90,0
|
|
h
Wheelbase
|
1064,0
|
1085,0
|
1105,0
|
1127,0
|
|
i
Chainstay length
|
416,0
|
416,0
|
416,0
|
416,0
|
|
j
Bottom bracket drop
|
27,0
|
27,0
|
27,0
|
27,0
|
|
k
Stack height
|
558,0
|
572,0
|
582,0
|
586,0
|
|
l
Reach
|
391,0
|
409,0
|
427,0
|
442,0
|
|
m
Standover height
|
660,0
|
694,0
|
748,0
|
779,0
|
|
x
Bottom bracket height
|
328,0
|
328,0
|
328,0
|
328,0
|
|
y
Front center
|
649,0
|
670,0
|
690,0
|
712,0
|
